Pulse Splitter-Amplifiers

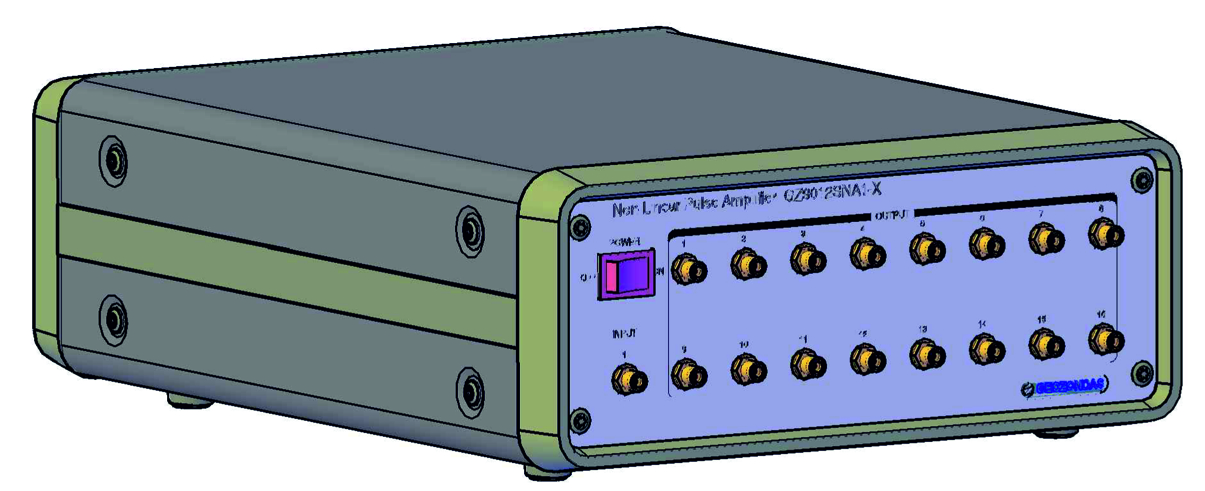

GZ9012SNA1-X
1 in 16Ch Pulse Splitter - Non Linear Pulse Amplifier GZ9012SNA1-X recommended as pulse splitter for multichannel triggering of Pulse Generators or other units, that require different trigger signals with amplitude or duration into 50 Ohm, than has customer trigger source. Each of the 16 channels can be adjusted separately according to customer requirements.
Number Of Inputs 1
Number Of Outputs up to 16
Output Waveform Positive Pulse
Output Amplitude Into 50 Ohm Nominal (1,5 ÷ 10) Vfixed during order
Technical Specification
Technical Specification
| Number of inputs | 1 |
|---|---|
| Number of outputs | up to 16 |
| Output Waveform | Positive Pulse |
| Output amplitude into 50 Ohm, nominal | (1,5 ÷ 10) Vfixed during order |
| Rise time, (20/80)%, no more | 2,0 ns |
| Fall time,(20/80)%, no more | 3,0 ns |
| Pulse width, nominal | 15÷55 ns fixed during order |
| Max Duty Cycle | 30 % |
| Front Jitter (rms), no more | 3 ps |
| Ringing p-p, no more | 0,1 x Amplitude |
| Input signal | voltage low level 0 V voltage high level (0,5÷5,0) V/50 Ohm rise time 2,5 ns max duration 5 ns min |
| Max Pulse Repetition Frequency | 10 MHz |
| Impedance, nominal | 50 Ohm |
| Type of HF Connectors | SMA socket |
| Temperature Range | (+5÷+35)°:C Temperature of gase |
| Consumption current, no more (measured at PRF max) | 400 mA @12 V |
| Power Supply | DC +(12,5 ± 1,5) V |
