Radar Systems

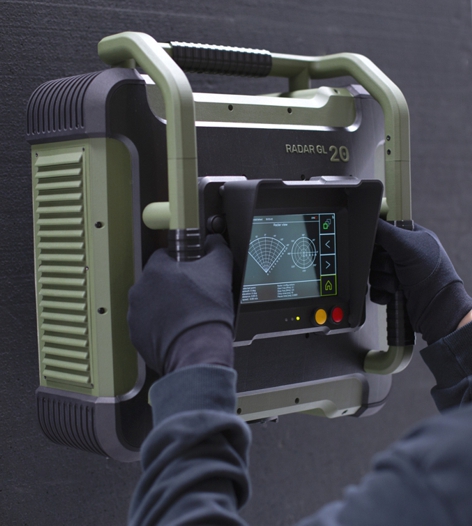

Through Wall Radar
The through-wall radar product remains one of the clearest commercial system offers on the current site and deserves a dedicated destination in the rebuilt catalog.
Applications
- Radar Imaging and Detection
Adc 10 bits
Target Representation Modes 2D & 3D
Range Resolution 30 cm
Angle Resolution 15°
Technical Specification
Technical Specification
| ADC | 10 bits |
|---|---|
| Target Representation Modes | 2D & 3D |
| Range Resolution | 30 cm |
| Angle Resolution | 15° |
| Internal battery continuous operation time | 30 min |
| External battery continuous operation time | 45 min |
Media
Product visuals and reference assets
Supporting Evidence
Application examples tied to this product context

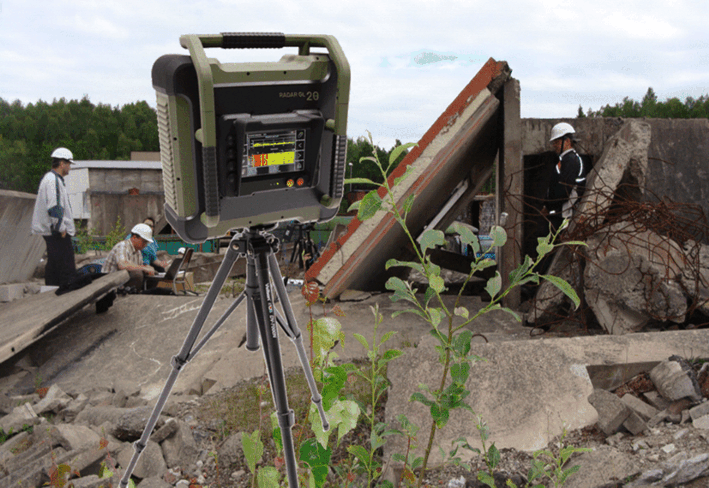

Detection of Live Objects Under Rubble and Behind Walls
Supporting detection example illustrating life-sign sensing in obstructed environments rather than a standalone sellable product.
Tracing of Objects in Free Space and Through-Wall Imaging
Supporting visualization for target tracing and through-wall imaging workflows associated with Geozondas radar systems.
