Rotary Positioners

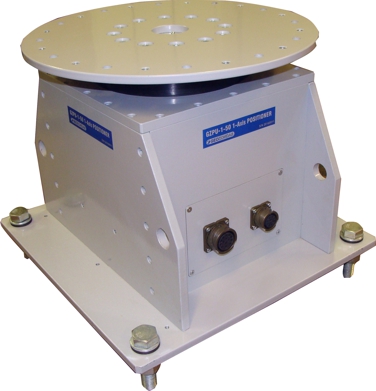

GZPU-1-50
GZPU-1-50 is a medium duty precision 1-axis Positioner in azimuth plane with vertical loading up to 50 kg. Fields of application: Far & Near Fields Antenna measurements, ISAR measurements.
Number Of Axes 1
Configuration Azimuth
Vertical Loading 50kg
Maximal Torque Of Azimuth 1180 Nm
Technical Specification
Technical Specification
| Number of axes | 1 |
|---|---|
| Configuration | Azimuth |
| Vertical loading | 50kg |
| Maximal torque of azimuth | 1180 Nm |
| Continuous torque of azimuth | 736 Nm |
| Max backlash of azimuth | 0.1° |
| Azimuth limit-to-limit travel | 0 ÷ 360° |
| Control | Via RS-232 (RS-485) |
| Control cable length | 15 m |
| Temperature Range | (− 10÷ +40) °C |
| Environments for Positioner | IP54 |
| Power Source: | AC 230 V/ 16 A |
| Positioner dimensions | (440x440x330) mm |
| Positioner weight | 85 kg |
| Controller dimensions | (480x425x264) mm |
| Controller weight | 9,5 kg |
