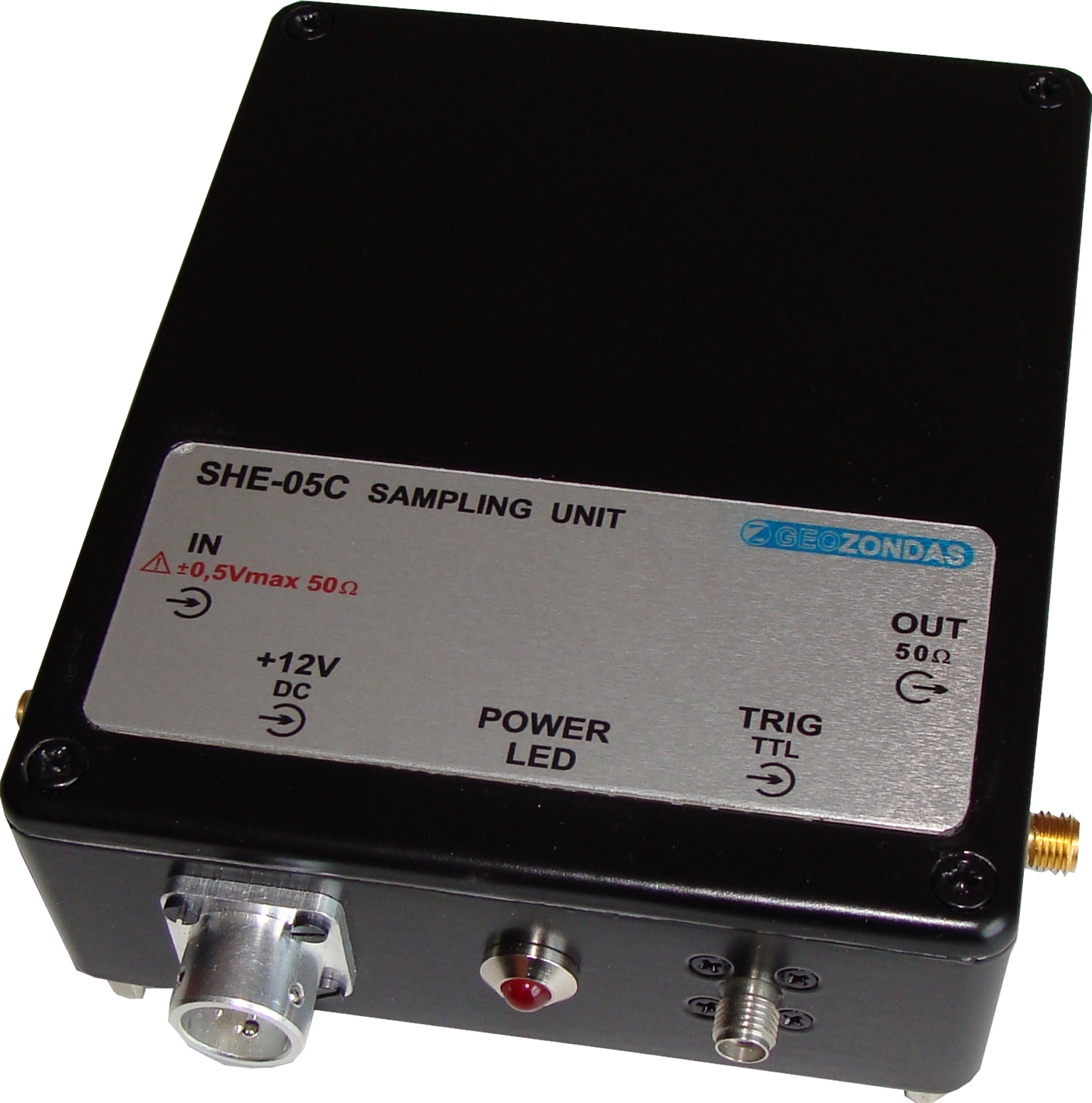

Sample & Hold Sampling Unit SHE-05C
The Sampling Unit SHE-05C with frequency range up to 5 GHz is SAMPLE and HOLD (S&H) module, that operates in equivalent time sampling mode.Output signal is LF analog signal, similar with HF signal in the input. Typical fields of applications: – UWB data acquisition devices and systems– Grounnd penetrating radars (GPR)– UWB radars
Number Of Channels 1
Bandwidth Of Channel (0 ÷ 5) GHz
Type Of Output Signal Analogue signal
Type Of Rf Connectors SMA Socket
Technical Specification
Technical Specification
| Number of channels | 1 |
|---|---|
| Bandwidth of channel | (0 ÷ 5) GHz |
| Dynamic range | ± 500 mV |
| Noise RMS max | 0,8 mV |
| Sampling rate (PRF) | 2000 kHz |
| Type of output signal | Analogue signal |
| Amplitude of output signal | ± 500 mVinto 50 Ohm load |
| Type of RF connectors | SMA Socket |
| Power Supply | DC (10,5÷14,5) V |
| Consumption current, +12 V, no more | 700 mA @ 12 V |
| Operating temperature range (on case) | (+10 ÷ +35) °CTemperature of case |
| Weight, no more | 0,5 kg |

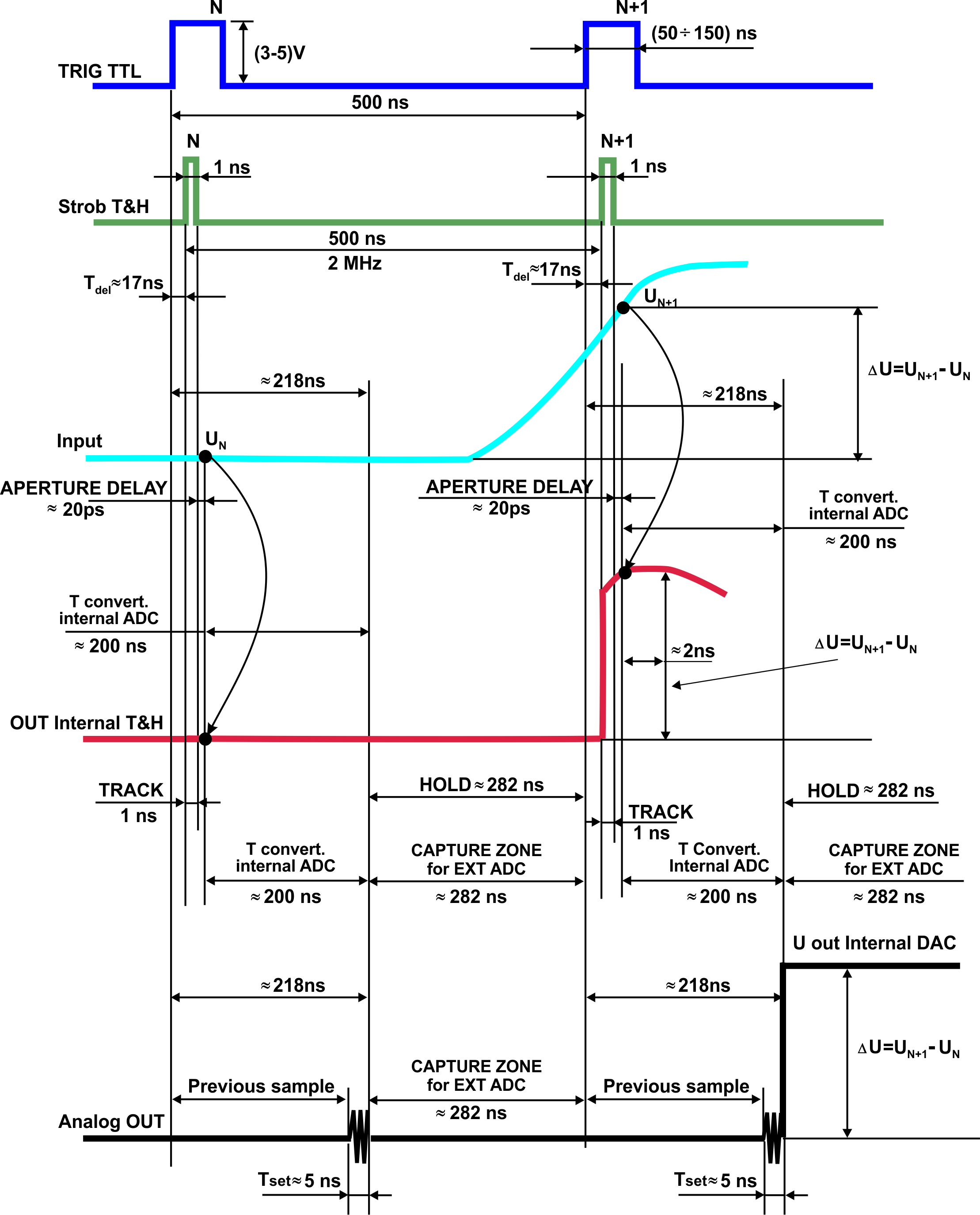

Diagrams
Waveforms and Diagrams
