Digital Sampling Oscilloscopes

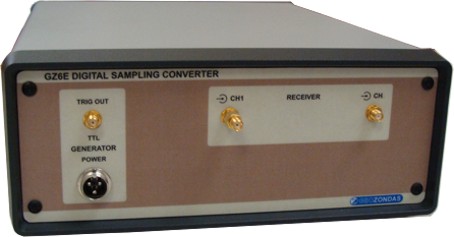

GZ6E
One-channel or two-channel Digital Sampling Oscilloscope GZ6E intended for UWB radar measurements in frequency range up to 6 GHz.· Economical 6 GHz Sampling Oscilloscope· Base model for UWB Radar Evaluation Kits
Dielectric Constants (1–100)
Number Of Channels 1 or 2
Bandwidth Of Channels (0,1÷6) GHz
Dynamic Range ±500 mV
Technical Specification
Technical Specification
| Dielectric constants ε | (1–100) |
|---|---|
| Number of channels | 1 or 2 |
| Bandwidth of channels | (0,1÷6) GHz |
| Dynamic range | ±500 mV |
| Sensitivity range | (1 ÷ 200) mV/div |
| CW offset | (-500 ÷ 500) mV |
| Noise RMS max | 0,85 mV |
| Number of ADC discretes | 12 |
| Averaging number (max) | 1024 |
| Input impedance of Channel inputs | 50 Ohm |
| Time interval resolution | 12,5 ps/point (0,0037)m@ ε =1,0 |
| Time Window | 100 ns/screen (0,15–15)m @ ε =1,0 |
| Operating mode | internal(TDR) |
| Operation System | 32 or 64 bit Windows 7/Win10 Operation System |
| Power Supply | DC (10,5–14,5)V |
| PRF | 250 kHz |
| Delay adjustment range | (0–100) ns (0–15 )m @ ε =1,0 |
| Maximal Number of points for Time Window | 4096 |
| Minimum Requirements for external PC | Processor Pentium, Parallel port (LPT) with EPP mode, USB 2.0 |
| Operating modes | Real time scanning (Life signals on screen) |
| Consumption @12 V | 1300 mA @ 12 V |
| Dimensions | (330 x 65 x 225) mm |
| Weight, no more | 3,5 kg |
| Operating temperature range | (+5÷+40)°C |
| Humidity | 95% (at 30°C) |
