Digital Sampling Oscilloscopes

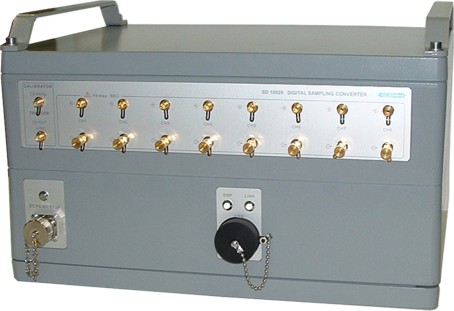

SD-10820
The 8-Channel Digital Sampling Converter SD-10820 is a intended for application in measurement systems for parameters test of broadband repeated signals in frequencies range of (0.2 ÷ 20) GHz with internal triggering.
Applications
- UWB Instrumentation R&D
Maximal Sampling Rate 1 MHz
Bandwidth Of Channel (0.2÷20) GHz
Input Impedance 50 Ohm
Number Of Channels Up to 8
Technical Specification
Technical Specification
| Number of Channels | Up to 8 |
|---|---|
| Data exchange | USB–2, LPT |
| Maximal Sampling Rate | 1 MHz |
| Bandwidth of channel | (0.2÷20) GHz |
| Input impedance | 50 Ohm |
| Dynamic range | ±0,5 V |
| ADC discrete value | 12 |
| Noise factor (RMS) | 1.8 mV (after substruction of 0 line) |
| Number of averaging | 1024 (adjustable) |
| Accuracy of amplitude measurements | (Ux / 1000 mV+40mV/Ux)% |
| Zero Drift of Y-axis | 1 mV |
| Time Base | (0.002 ÷ 20) ns/div (adjustable with step 0.002 ns/div) |
| Coarse Delay: | 100 ns |
| Number of samples in time window | 4096 max |
| Short-time triggering instability (Jitter) in TDR Modewith test Pulse Generator Head | 8.0 ps (2.0 ps RMS) @ Fine Delay 0÷1 ns |
| Accuracy of time measurements | ±(5 + 0,001T)ps |
| RF connectors | SMA connectors with waterproof cups |
| System time drift | < 15 ps/hour (with Generator) |
| Temperature range | (+5÷ +35) °C |
| Power Supply | DC + External AC/DC converter (90÷260)V |
