Digital Sampling Oscilloscopes

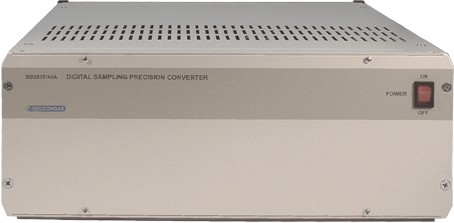

SD203TMS-40A
The Two-Channel Digital Sampling Precision Converter SD203TMS-40A is a part of Antenna Test Area and intended for measurement of parameters of broadband repeated signals in frequencies range of (0.1÷40) GHz with internal and external (optional) triggering
Maximal Sampling Rate 1000 kHz
Bandwidth Of Channel (0.1÷40) GHz
Input Impedance 50 Ohm
Number Of Channels 2
Technical Specification
Technical Specification
| Number of Channels | 2 |
|---|---|
| Data exchange | through USB 2.0 |
| Operation mode | Oscilloscope mode |
| Maximal Sampling Rate | 1000 kHz |
| Bandwidth of channel | (0.1÷40) GHz |
| Input impedance | 50 Ohm |
| DC offset range | -1000÷1000 (adjustable with step 1 mV) |
| Sensitivity Range | 1÷200 mV/div (adjustable with step 1 mV/div) |
| Dynamic range | ±1000 mV |
| Noise factor (RMS) | 2.0 mV |
| Number of averaging | 4096(adjustable) |
| Accuracy of amplitude measurements | (Ux /1000mV+40mV/Ux) % |
| Zero Drift of Y-axis | ± 0.3 mV |
| Time Base | (0.002 ÷ 200) ns/div (adjustable with step 0.002 ns/div) |
| Fine Delay | 0 ÷ 4 ns (adjustment range) 0.01 ns (step) |
| Coarse Delay: | 0 ÷ 1990 ns (adjustment range) 4 ns (step) |
| Number of samples in time window | 4 ÷ 4096(adjustable) |
| Short-time triggering instability (Jitter) in TDR Modewith test Pulse Generator Head | 8.0 ps (2.0 ps RMS) @ Fine Delay 0÷1 ns |
| Accuracy of time measurements | 3ps +2%Tx(5ps/div<Scale<100 ps/div) 5ps +0,1%Tx(100ps/div<Scale<1 ns/div)10ps +0,1%Tx (Scale>1 ns/div) |
| RF connectors | SMA |
| System time drift | < 15 ps/hour (with Generator) |
| Spectrum stability | 1÷2% (@ 40 GHz) |
| Temperature range | (+5÷ +35) °C |
| Power Supply | AC main (90÷260) V; (50÷ 60)Hz |
