Digital Sampling Oscilloscopes
GZ10M

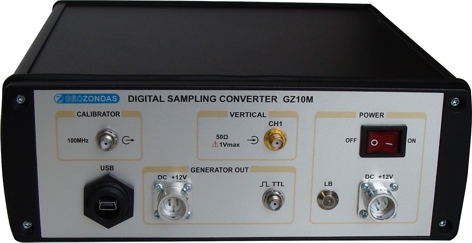

One channel Digital Sampling Oscilloscope GZ10M is intended for UWB radar measurements in frequency range 10,6 GHz .· Economical 10,6 GHz Sampling Oscilloscope· Wide range of options· UWB Radar Evaluation Kits
Number Of Channels 1
Bandwidth Of Channels (0,1÷10,6) GHz
Dynamic Range ±500 mV
Sensitivity Range (1 ÷ 200) mV/div
Technical Specification
Technical Specification
| Number of channels | 1 |
|---|---|
| Bandwidth of channels | (0,1÷10,6) GHz |
| Dynamic range | ±500 mV |
| Sensitivity range | (1 ÷ 200) mV/div |
| CW offset | (-500 ÷+ 500) mV |
| Noise RMS max | 1,2 mV |
| Number of ADC discretes | 12 |
| Averaging number (max) | 4096 |
| Input impedance of Channel inputs | 50 Ohm |
| Time interval resolution | 1,5 ps/point |
| Time Window | 100 ns/screen |
| Operating mode | Internal(TDR) |
| Operation System | 32 or 64 bit Windows 7/Win10 Operation System |
| Power Supply | DC (10,5–14,5)V |
| PRF | 1,0 MHz; 500 kHz; 200 kHz100 kHz; 50 kHz |
| Delay adjustment range | 160 ns(8 steps 20 ns each) |
| Maximal Number of points for Time Window | 4096 |
| Minimum Requirements for external PC | USB 2.0 |
| Consumption @12 V | 1300 mA @ 12 V |
| Dimensions | (210 x 74 x 220) mm |
| Weight, no more | 2,4 kg |
| Operating temperature range | (+5÷+35)°C |
| Storage temperature | (-25 ÷ +60)°C |
| Humidity | 95% (at 30°C) |
