Pulse Generator Heads
GZ1118GNV-035/20
The Pulse Generator Head GZ1118GNV-035/20 is designed for generation of negative high speed electrical pulses with short rise time and variable duration.
Waveform Pulse
Amplitude No Less 15 V
Polarity negative
Rise Time 0 2 0 8 Level No More 0.3 ns
Technical Specification
Technical Specification
| Waveform | Pulse |
|---|---|
| Amplitude, no less | 15 V |
| Polarity | negative |
| Rise Time(0,2-0,8 level) , no more | 0.3 ns |
| Fall Time (0,2/0,8) level, no more | 0,3 ns |
| Waveform ringing p-p, no more | 0,15 x Amplitude(before and 1,0 ns after main pulse) |
| Delay (trigger in to pulse out), no more | 12.0 ns |
| Pulse Width (0,5 level) | (0.35 – 2.0) nsvariable from rear panel |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 2 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 25 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 3,0 ps |
| Power Supply, V | +(12,5±1,5) V |
| Consumption Current (measured @ 1 MHz PRF), no more | 300 mA @ +12V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
Downloads
Downloads and References

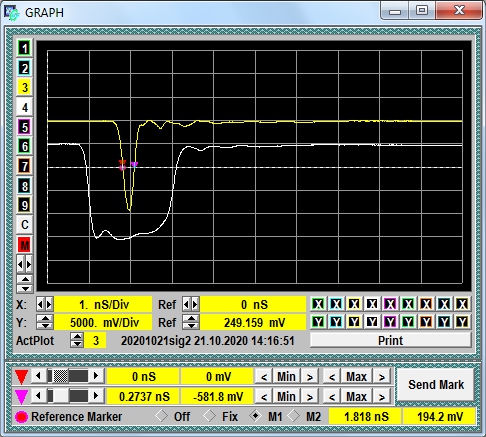

Diagrams
