GZ Geozondas Ultra-Wideband Measurement and RF Components

Pulse Generators

Pulse Generator Heads

The catalog includes multiple generator classes intended for both standalone use and integration into UWB measurement systems.

Why this family matters

  • Picosecond to nanosecond generation
  • Multiple waveform forms
  • Built for measurement and radar system integration

Application Paths

Within Pulse Generators

Products

Canonical product pages within Pulse Generator Heads

Group

Nanosecond and Picosecond

Pulse heads for short-duration impulse generation workflows.

Pulse Generator Head

Nanosecond and Picosecond Pulse Generators

Picosecond and nanosecond pulse generators

Pulse Generator Head

GZ1118GNV-035/20

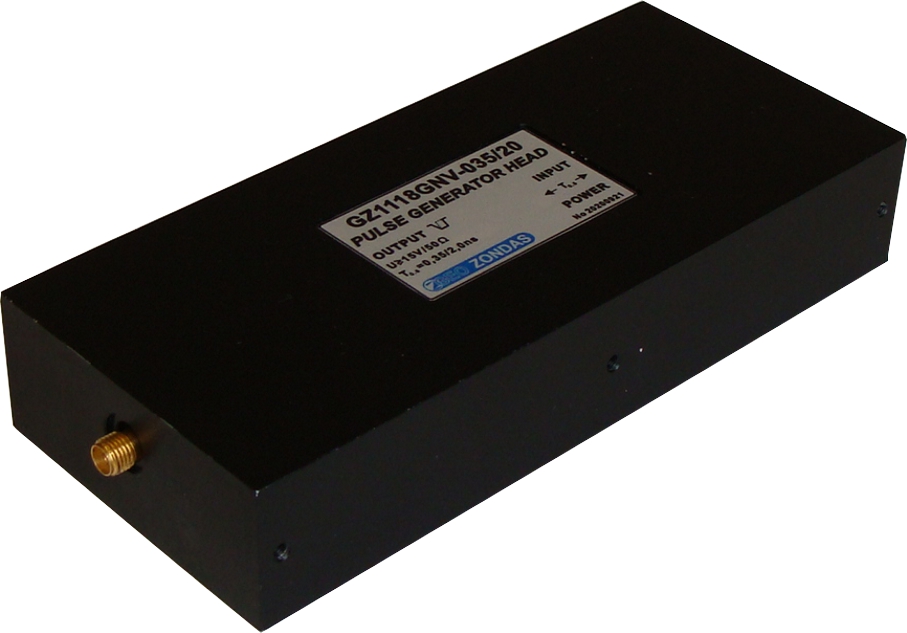

GZ1118GNV-035/20 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GNV-035/20 product thumbnail
Waveform
Amplitude 15 V
Pulse Width (0.35 – 2.0) nsvariable from rear panel
Maximal PRF 25 MHz
Polarity
negative polarity 1

Pulse Generator Head

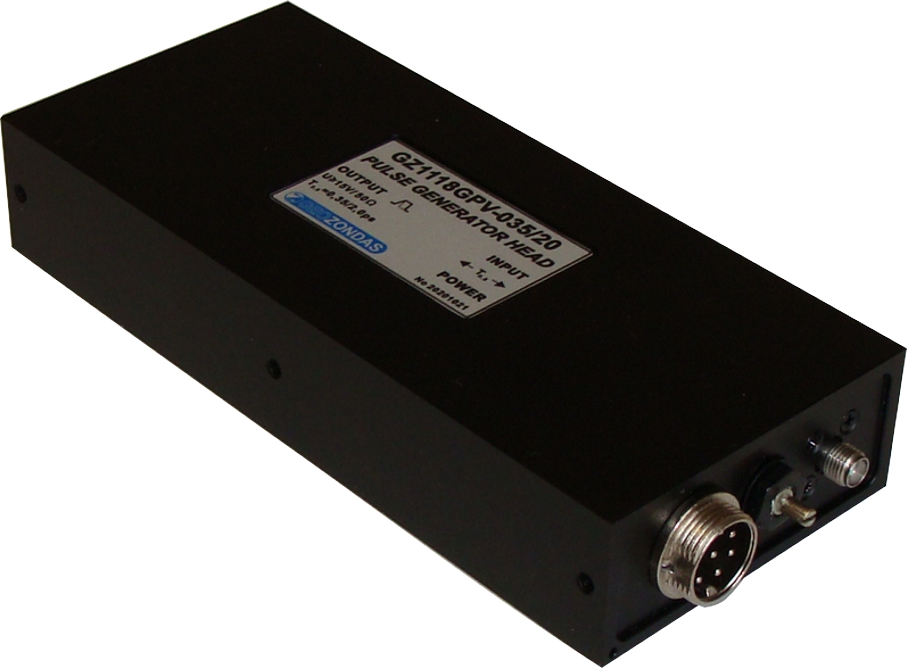

GZ1118GPV-035/20

GZ1118GPV-035/20 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GPV-035/20 product thumbnail
Waveform
Amplitude 15,0 V
Pulse Width (0.35 – 2.0) nsvariable from rear panel
Maximal PRF 25 MHz
Polarity
positive polarity 1

Pulse Generator Head

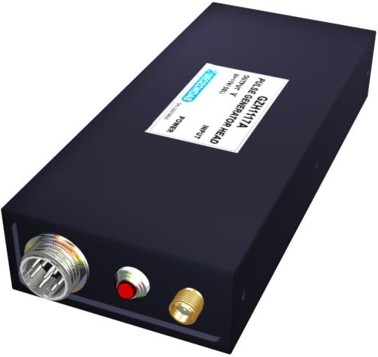

GZH1117A

GZH1117A is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZH1117A product thumbnail
Waveform
Amplitude 13,5 V
Pulse Width (35±5) ps (36÷44 ps taking into consideration rise time of 20GHz converter)
Maximal PRF 50 MHz
Polarity
negative polarity 1

Pulse Generator Head

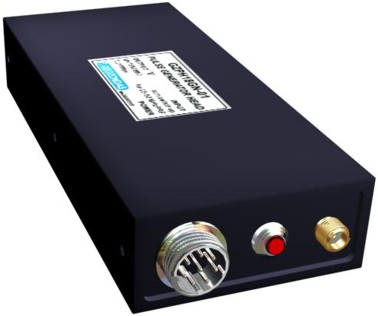

GZPH18GN-01

GZPH18GN-01 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZPH18GN-01 product thumbnail
Waveform
Amplitude 15 V
Pulse Width (100 ±10) ps with trimming from panel
Maximal PRF 50 MHz
Polarity
negative polarity 1

Pulse Generator Head

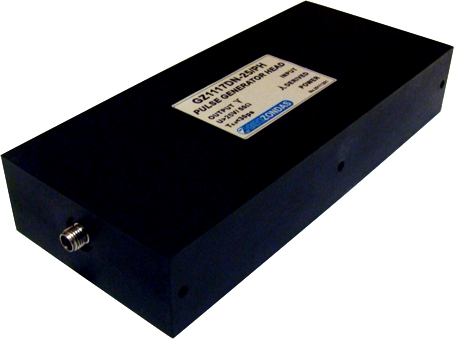

GZ1117DN-25/PH

GZ1117DN-25/PH is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1117DN-25/PH product thumbnail
Waveform
Amplitude 25 V
Pulse Width (30+2) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

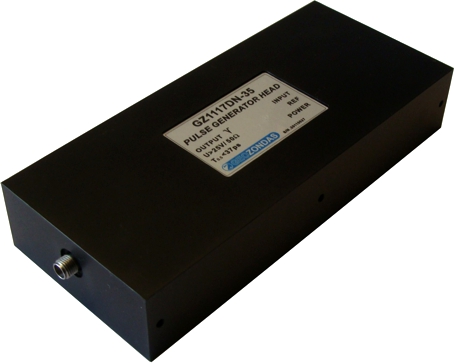

GZ1117DN-35

GZ1117DN-35 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1117DN-35 product thumbnail
Waveform
Amplitude 25 V
Pulse Width (35+2) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

GZ1121GP-05

GZ1121GP-05 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

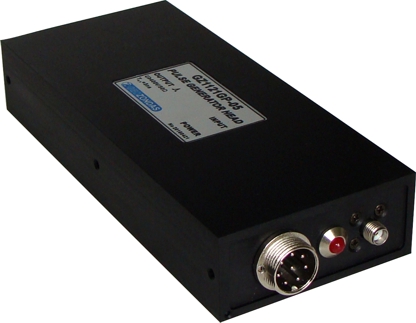

GZ1121GP-05 product thumbnail
Waveform
Amplitude 400 V
Pulse Width (5,0 ± 0,5) ns
Maximal PRF 100 kHz
Polarity
positive polarity 1

Pulse Generator Head

GZ1121GP-01

GZ1121GP-01 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1121GP-01 product thumbnail
Waveform
Amplitude 400 V
Pulse Width (1,0 ± 0,1) ns
Maximal PRF 100 kHz
Polarity
positive polarity 1

Pulse Generator Head

GZ1117DN-20/1

GZ1117DN-20/1 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1117DN-20/1 product thumbnail
Waveform
Amplitude 20 V
Pulse Width (25+2) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

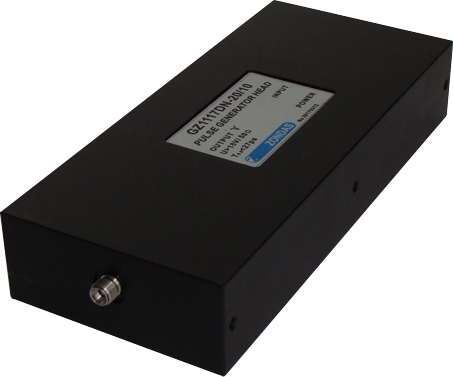

GZ1117DN-20/10

GZ1117DN-20/10 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1117DN-20/10 product thumbnail
Waveform
Amplitude 20 V
Pulse Width (27+2) ps
Maximal PRF 10 MHz
Polarity
negative polarity 1

Pulse Generator Head

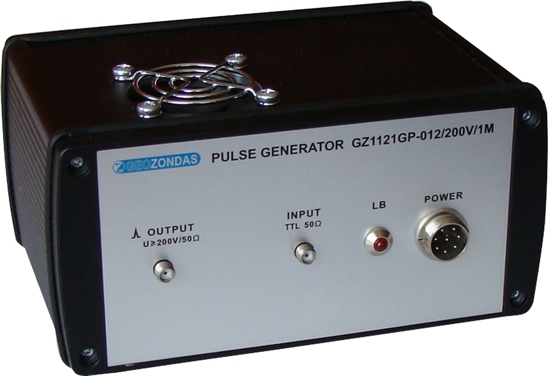

GZ1121GP-012/200V/1M

GZ1121GP-012/200V/1M is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1121GP-012/200V/1M product thumbnail
Waveform
Amplitude 200 V
Pulse Width 1,2 ns
Maximal PRF 1 MHz
Polarity
positive polarity 1

Pulse Generator Head

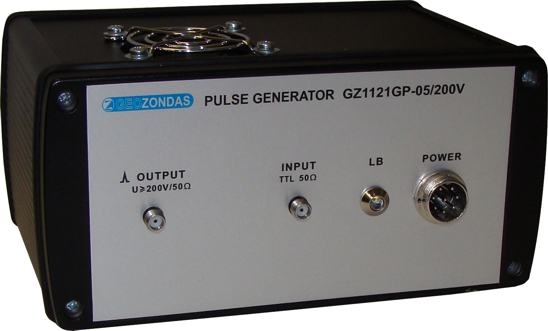

GZ1121GP-05/200V/1M

GZ1121GP-05/200V/1M is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1121GP-05/200V/1M product thumbnail
Waveform
Amplitude 200 V
Pulse Width 5,0 ns
Maximal PRF 1 MHz
Polarity
positive polarity 1

Pulse Generator Head

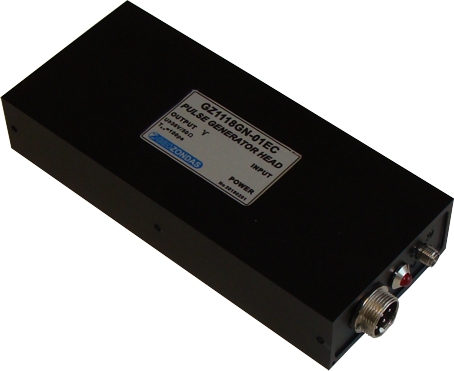

GZ1118GN-01EC

GZ1118GN-01EC is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-01EC product thumbnail
Waveform
Amplitude 38 V
Pulse Width (100±10) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

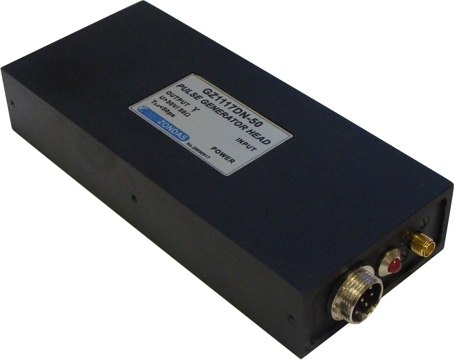

GZ1117DN-50

GZ1117DN-50 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1117DN-50 product thumbnail
Waveform
Amplitude 25 V
Pulse Width (50+5) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

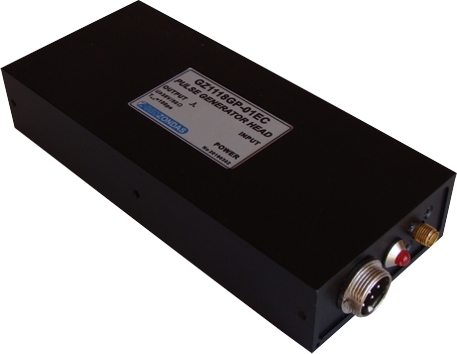

GZ1118GP-01EC

GZ1118GP-01EC is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GP-01EC product thumbnail
Waveform
Amplitude 35 V
Pulse Width (100±10) ps
Maximal PRF 1 MHz
Polarity
positive polarity 1

Pulse Generator Head

GZ1121GP-05HV

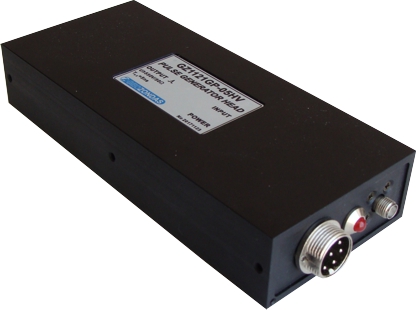

GZ1121GP-05HV is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1121GP-05HV product thumbnail
Waveform
Amplitude 550 V
Pulse Width (5,0 ± 0,5) ns
Maximal PRF 100 kHz
Polarity
positive polarity 1

Pulse Generator Head

GZ1118GN-025

GZ1118GN-025 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-025 product thumbnail
Amplitude 70 V
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

GZ1118GN-03/80

GZ1118GN-03/80 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-03/80 product thumbnail
Amplitude 80 V
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

GZ1118GN-02

GZ1118GN-02 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-02 product thumbnail
Waveform
Amplitude 65 V
Pulse Width (200±25) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

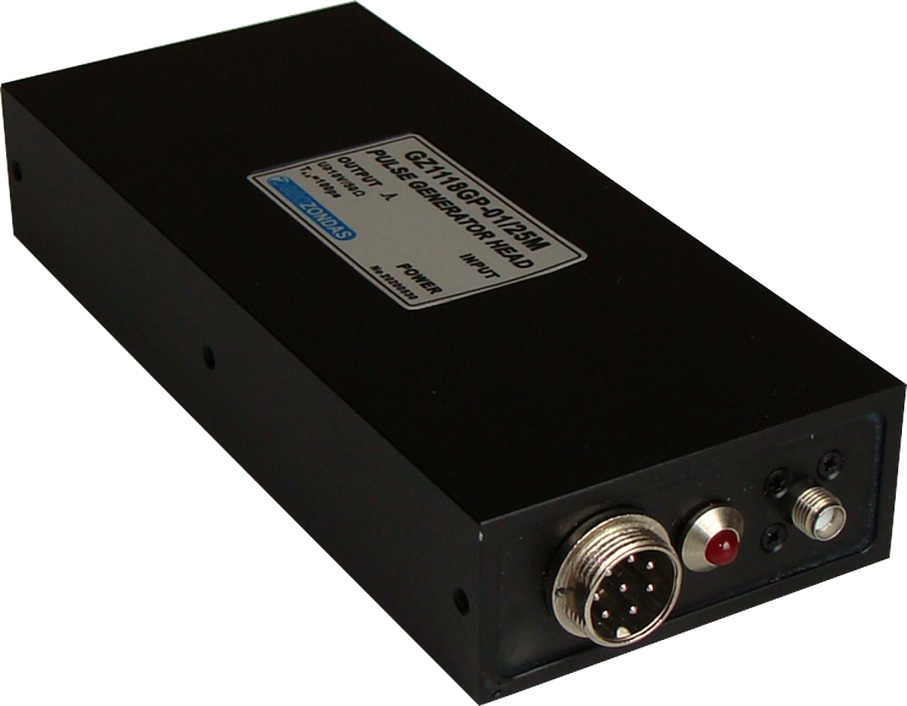

GZ1118GP-01/25M

GZ1118GP-01/25M is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GP-01/25M product thumbnail
Waveform
Amplitude 10 V
Pulse Width (100±10) ps
Maximal PRF 25 MHz
Polarity
positive polarity 1

Pulse Generator Head

GZ1118GP-01/50M

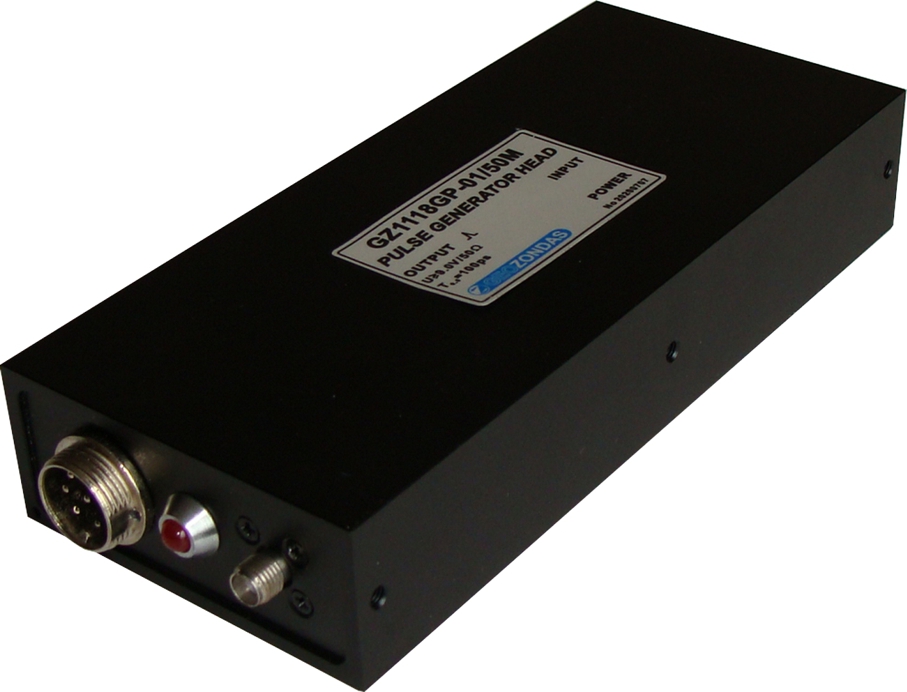

GZ1118GP-01/50M is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GP-01/50M product thumbnail
Waveform
Amplitude 9 V
Pulse Width (100±20) ps
Maximal PRF 50 MHz
Polarity
positive polarity 1

Pulse Generator Head

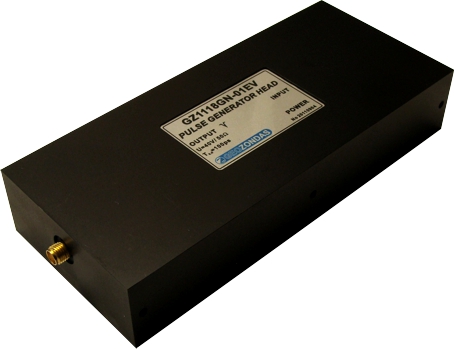

GZ1118GN-01EV

GZ1118GN-01EV is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-01EV product thumbnail
Waveform
Amplitude 38 V
Pulse Width (100±10) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

GZ1117ME-12G

GZ1117ME-12G is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1117ME-12G product thumbnail
Waveform
Amplitude 20 V
Maximal PRF 1 MHz

Pulse Generator Head

GZ1118GN-10

GZ1118GN-10 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-10 product thumbnail
Waveform
Amplitude 80,0 V
Pulse Width (1,0 ± 0,1) ns
Maximal PRF 500 kHz
Polarity
negative polarity 1

Pulse Generator Head

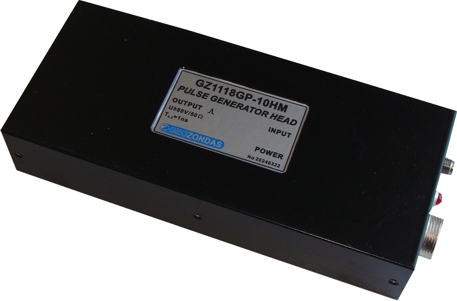

GZ1118GP-10HM

GZ1118GP-10HM is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GP-10HM product thumbnail
Waveform
Amplitude 80,0 V
Pulse Width (1,0 ± 0,1) ns
Maximal PRF 500 kHz
Polarity
positive polarity 1

Pulse Generator Head

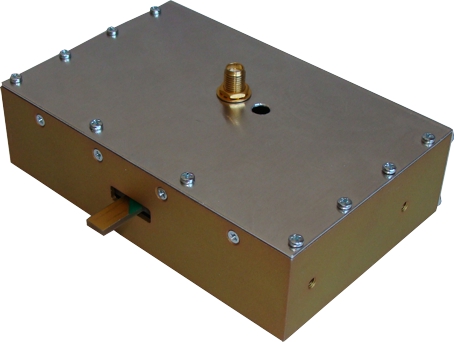

GZ1118GNP-10

GZ1118GNP-10 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GNP-10 product thumbnail
Waveform
Amplitude +80,0 V / -80,0 Vinto 50 Ohm
Pulse Width (1,0 ± 0,1) ns
Maximal PRF 500 kHz
Polarity
negative and positive polarity polarity 1negative and positive polarity polarity 2

Pulse Generator Head

GZ1118GNP-03

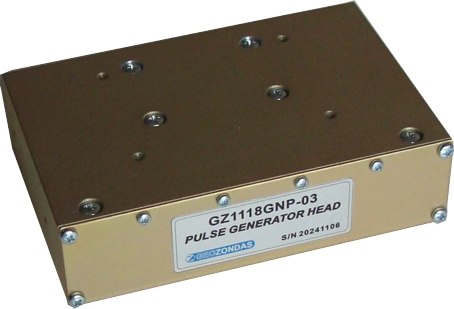

GZ1118GNP-03 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GNP-03 product thumbnail
Waveform
Amplitude +75,0 V / -75,0 Vinto 50 Ohm
Pulse Width (300 ± 30)ps
Maximal PRF 500 kHz
Polarity
negative and positive polarity polarity 1negative and positive polarity polarity 2

Pulse Generator Head

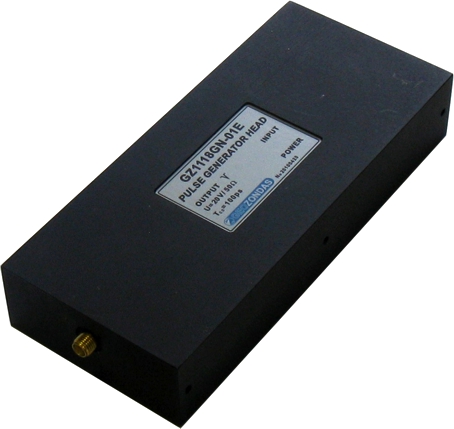

GZ1118GN-01E

GZ1118GN-01E is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GN-01E product thumbnail
Waveform
Amplitude 20 V
Pulse Width (100±10) ps
Maximal PRF 1 MHz
Polarity
negative polarity 1

Pulse Generator Head

GZ1118GPV-10/100

GZ1118GPV-10/100 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GPV-10/100 product thumbnail
Waveform
Amplitude 10,0 V
Pulse Width (1.0 ÷ 10.0) nsvariable from panel
Maximal PRF 1 MHz

Pulse Generator Head

GZ1118GP-03

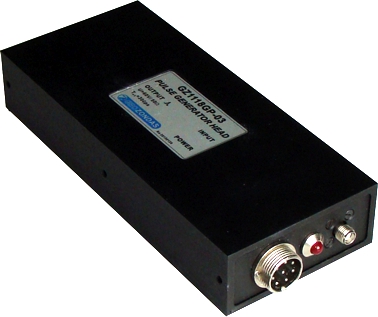

GZ1118GP-03 is a high-speed pulse generator head for UWB instrumentation and radar development workflows.

GZ1118GP-03 product thumbnail
Waveform
Amplitude 60 V
Pulse Width (300±30) ps
Maximal PRF 1 MHz
Polarity
positive polarity 1

Group

Nanosecond Monocycle

Monocycle generators for radar and UWB sensing workflows.

Pulse Generator Head

Monocycle Pulse Generators

Nanosecond monocycle pulse generators perform a single sinusoidal signal with central frequency in range 100÷5000 MHz.

Pulse Generator Head

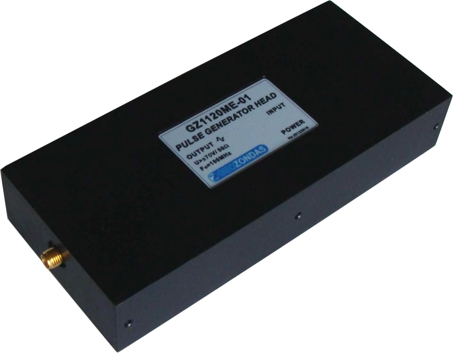

GZ1120ME-01

GZ1120ME-01 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-01 product thumbnail
Waveform
Amplitude 170 V
Maximal PRF 100 kHz

Pulse Generator Head

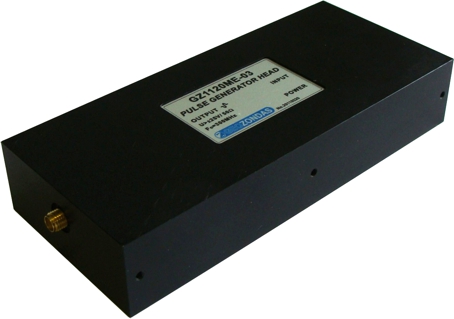

GZ1120ME-03

GZ1120ME-03 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-03 product thumbnail
Waveform
Amplitude 60 V
Maximal PRF 500 kHz

Pulse Generator Head

GZ1120ME-04

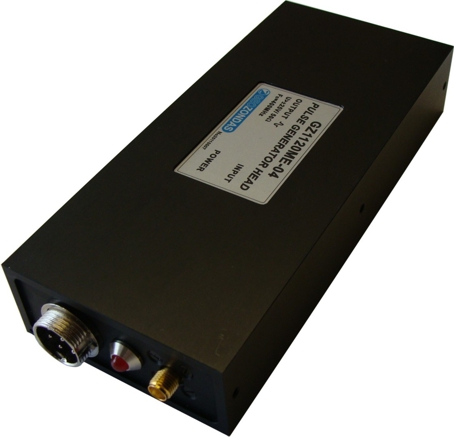

GZ1120ME-04 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-04 product thumbnail
Waveform
Amplitude 50 V
Maximal PRF 1 MHz

Pulse Generator Head

GZ1120ME-10

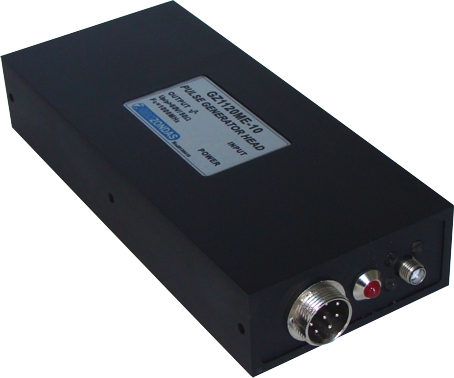

GZ1120ME-10 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-10 product thumbnail
Waveform
Amplitude 60 V
Maximal PRF 1 MHz

Pulse Generator Head

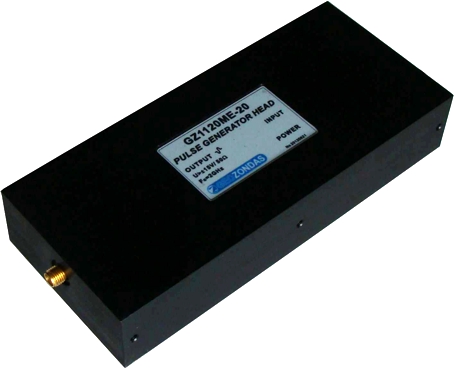

GZ1120ME-20

GZ1120ME-20 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-20 product thumbnail
Waveform
Amplitude 35 V
Maximal PRF 1 MHz

Pulse Generator Head

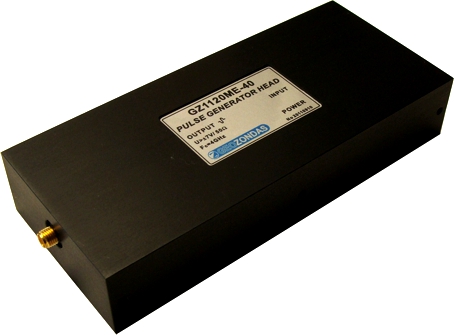

GZ1120ME-40HV

GZ1120ME-40HV is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-40HV product thumbnail
Waveform
Amplitude 28 V
Maximal PRF 1 MHz

Pulse Generator Head

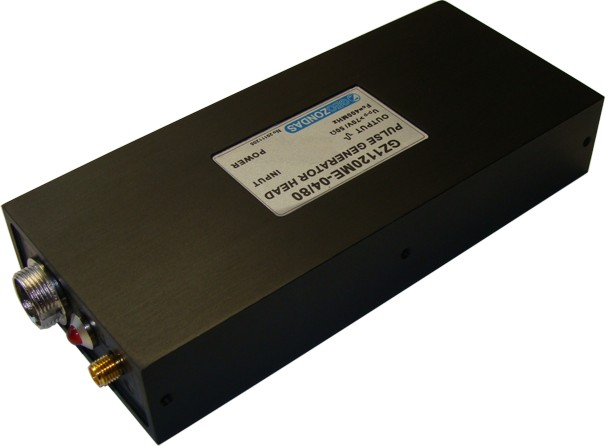

GZ1120ME-04 /80

GZ1120ME-04 /80 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-04 /80 product thumbnail
Waveform
Amplitude 70 V
Maximal PRF 1 MHz

Pulse Generator Head

GZ1120ME-35/50M

GZ1120ME-35/50M is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-35/50M product thumbnail
Waveform
Amplitude 10 V
Maximal PRF 50 MHz

Pulse Generator Head

GZ1121ME-03

GZ1121ME-03 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1121ME-03 product thumbnail
Waveform
Amplitude 400 V
Maximal PRF 100 KHz

Pulse Generator Head

GZ1121ME-03/200V/1M

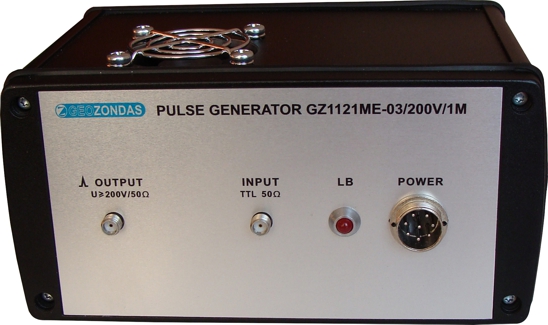

GZ1121ME-03/200V/1M is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1121ME-03/200V/1M product thumbnail
Waveform
Amplitude 200 V
Maximal PRF 1 MHz

Pulse Generator Head

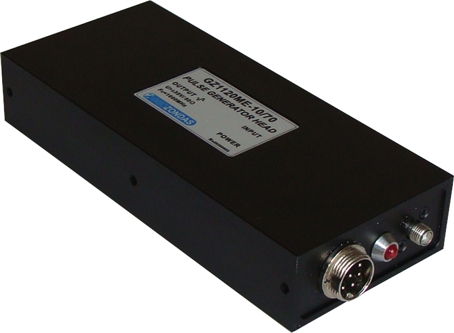

GZ1120ME-10/70

GZ1120ME-10/70 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-10/70 product thumbnail
Waveform
Amplitude 70 V
Maximal PRF 1 MHz

Pulse Generator Head

GZ1120ME-15/70

GZ1120ME-15/70 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-15/70 product thumbnail
Waveform
Amplitude 70 V
Maximal PRF 1 MHz

Pulse Generator Head

GZ1121ME-005

GZ1121ME-005 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1121ME-005 product thumbnail
Waveform
Amplitude 400 V
Maximal PRF 100 KHz

Pulse Generator Head

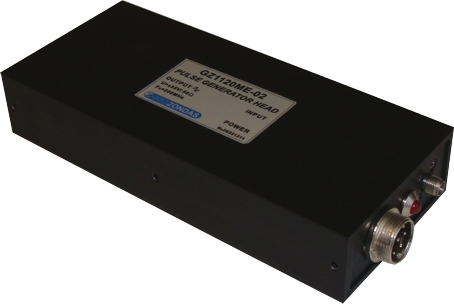

GZ1120ME-02

GZ1120ME-02 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZ1120ME-02 product thumbnail
Waveform
Amplitude 80 V
Maximal PRF 0.5 MHz

Pulse Generator Head

GZPM-25

GZPM-25 is a monocycle pulse generator head for UWB instrumentation and radar development workflows.

GZPM-25 product thumbnail
Waveform
Amplitude 10 V
Maximal PRF 10 MHz
