GZPU-1/50-EC-AB

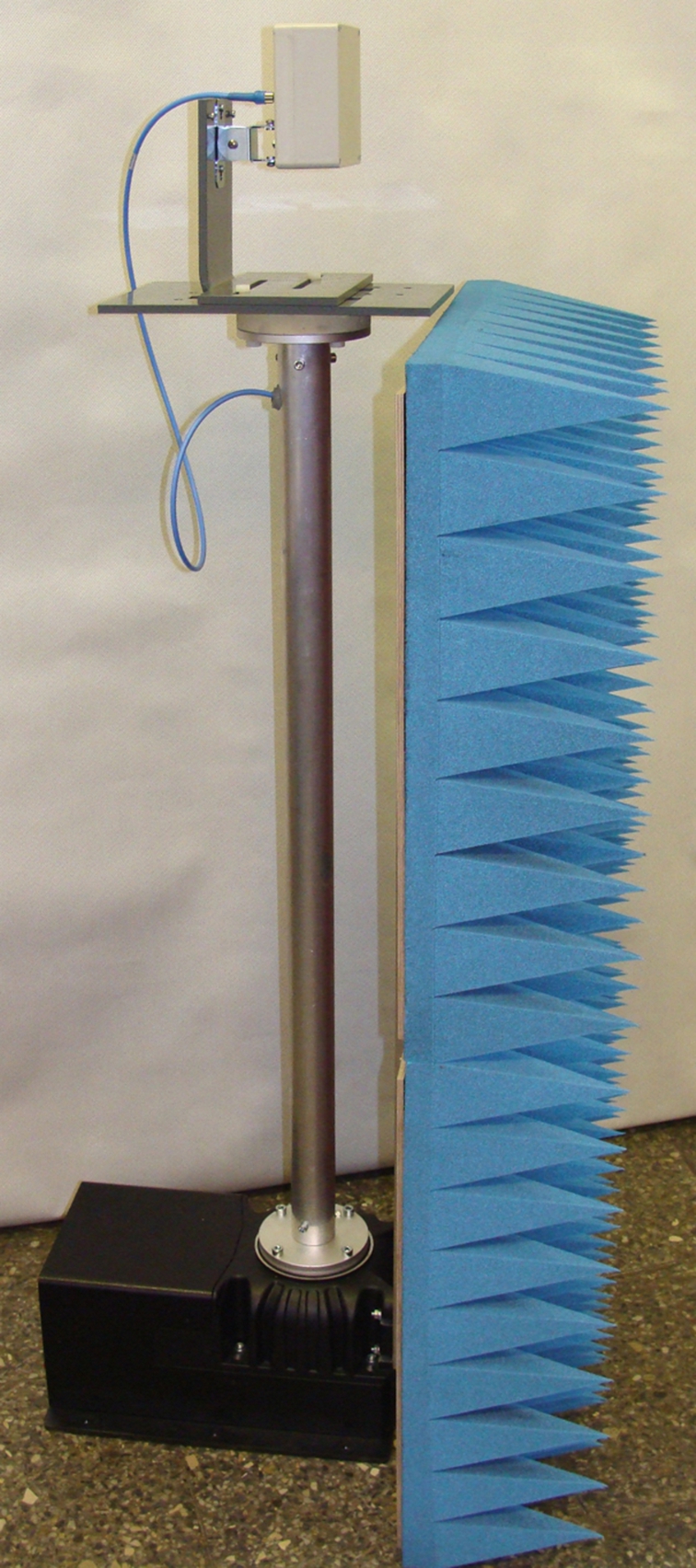

GZPU-1/50-EC-AB is economical light duty 1-axis Positioner in azimuth plane with vertical loading up to 70 kg. Fields of application: Far & Near Fields Antenna measurements, SAR, ISAR measurements. Delivery set includes: absorber wall, 1 m AL holder for object under test, DLL for LabView NI. Optional: rotary jonts up to 40 GHz, phase stable measurement cables, low reflected pylon, antenna holders, additional DLL and control cables lengths under customer requirements.
Number Of Axes 1
Configuration Azimuth
Vertical Loading 70 kg
Maximal Torque Of Azimuth 50 Nm
Technical Specification
Technical Specification
| Number of axes | 1 |
|---|---|
| Configuration | Azimuth |
| Vertical loading | 70 kg |
| Maximal torque of azimuth | 50 Nm |
| Continuous torque of azimuth | 42 Nm |
| Max backlash of azimuth | 0.16° |
| Azimuth limit-to-limit travel | 0 ÷ 360° |
| Control | Via RS-232 (RS-485) |
| Control cable length | 10 m |
| Temperature Range | (− 10÷ +40) °C |
| Environments for Positioner | IP54 |
| Power Source: | AC 90÷240 V |
| Positioner dimensions | (400x275x222) mm |
| Positioner weight | 15 kg |
| Controller dimensions | (204x150x300)mm |
| Controller weight | 6,55 kg |
