Rotary Positioners
GZPU-3-300

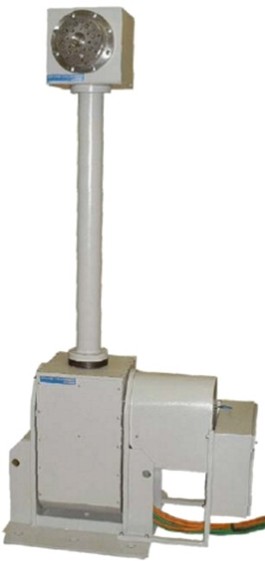

GZPU-3-300 is a medium duty precision Pol /Az / El Positioner with vertical loading up to 300 kg. Fields of application: Far & Near Fields Antenna measurements, ISAR measurements.
Number Of Axes 3
Configuration Moveable Polarizationper Azimuthper Elevation
Vertical Loading 300 kg
Maximal Torque Of Azimuth 647 Nm
Technical Specification
Technical Specification
| Number of axes | 3 |
|---|---|
| Configuration | Moveable Polarizationper Azimuthper Elevation |
| Vertical loading | 300 kg |
| Maximal torque of azimuth | 647 Nm |
| Max torque of elevation | 1840 Nm |
| Max torque of polarization | 647 Nm |
| Max backlash of azimuth | 0.1° |
| Max backlash of elevation | 0.1° |
| Max backlash of polarization | 0.1° |
| Azimuth limit-to-limit travel | 0 ÷ 360° |
| Elevation limit-to-limit travel | ±95° |
| Polarization limit-to-limit travel | 0 ÷ 360° |
| Control | Via RS-485 (RS-485) |
| Control cable length | 5 m |
| Temperature Range | (− 10÷ +40) °C |
| Environments for Positioner | IP54 |
| Power Source: | AC 230 V/ 25 A |
| Controller dimensions | (700x600x300) mm |
| Controller weight | 45 kg |
