Rotary Positioners

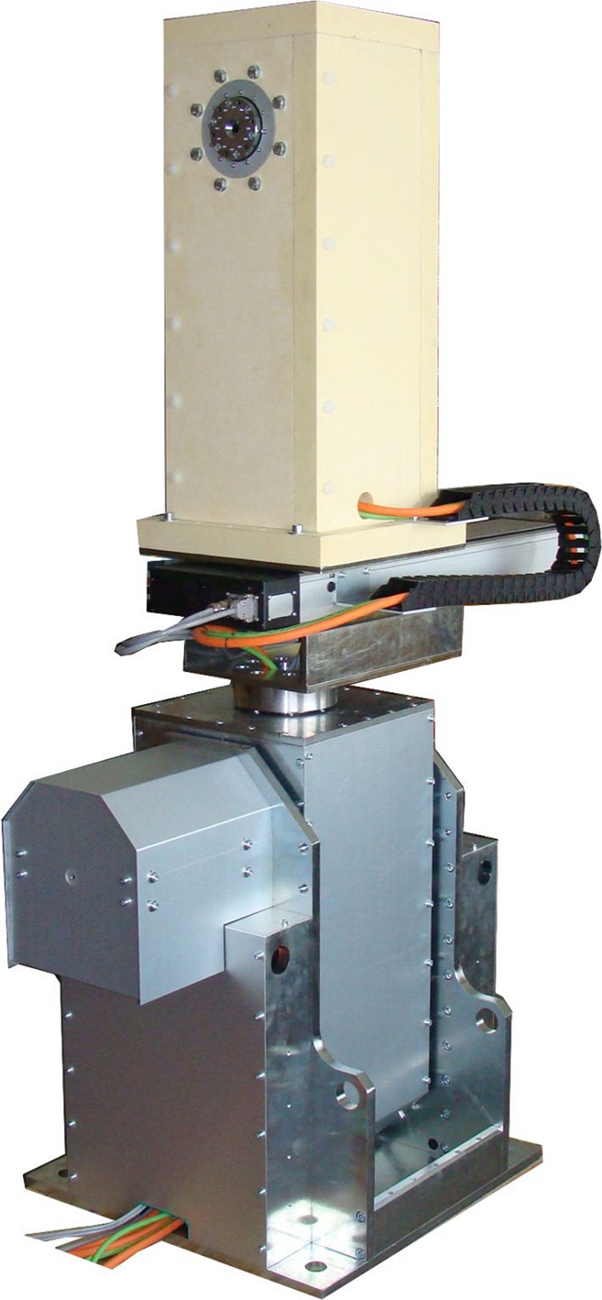

GZPU-4-20PL
GZPU-4-20PL is a medium duty precision 4-axes positioner (AP-AL-AZ-EL) with vertical loading up to 20 kg.Polarization Axis has about 0,6 m altitude over positioner body via Low Reflected Pylon.Field of application: Far & Near Fields Antenna Measurements, 2D & 3D ISAR Measurements.
Number Of Axes 4
Configuration Polarization (AP)per Linear (AL)per Azimuth (AZ)per Elevation (EL)
Vertical Loading 20 kg
Maximal Torque Of Azimuth 647 Nm
Technical Specification
Technical Specification
| Number of axes | 4 |
|---|---|
| Configuration | Polarization (AP)per Linear (AL)per Azimuth (AZ)per Elevation (EL) |
| Vertical loading | 20 kg |
| Maximal torque of azimuth | 647 Nm |
| Max torque of elevation | 1840 Nm |
| Max torque of polarization | 176 Nm |
| Continuous torque of azimuth | 420 Nm |
| Continuous torque of elevation | 1080 Nm |
| Continuous torque of polarization | 108 Nm |
| Max backlash of azimuth | 0.05° |
| Max backlash of elevation | 0.05° |
| Max backlash of polarization | 0.05° |
| Azimuth limit-to-limit travel | 0 ÷ 360° |
| Elevation limit-to-limit travel | ±95° |
| Polarization limit-to-limit travel | 0 ÷ 360° |
| Linear Axis limit-to-limit travel | 500 mm |
| Control | Via RS-232 |
| Control cable length | 15 m |
| Temperature Range | (− 10÷ +40) °C |
| Environments for Positioner | IP20 |
| Power Source: | AC 90÷260 V |
| Controller dimensions | AP, AZ, EL (600x400x250) mmAL (350x210x150) mm |
| Controller weight | 20 kg (AP, AZ, EL)5 kg (AL) |
