Pulse Formers

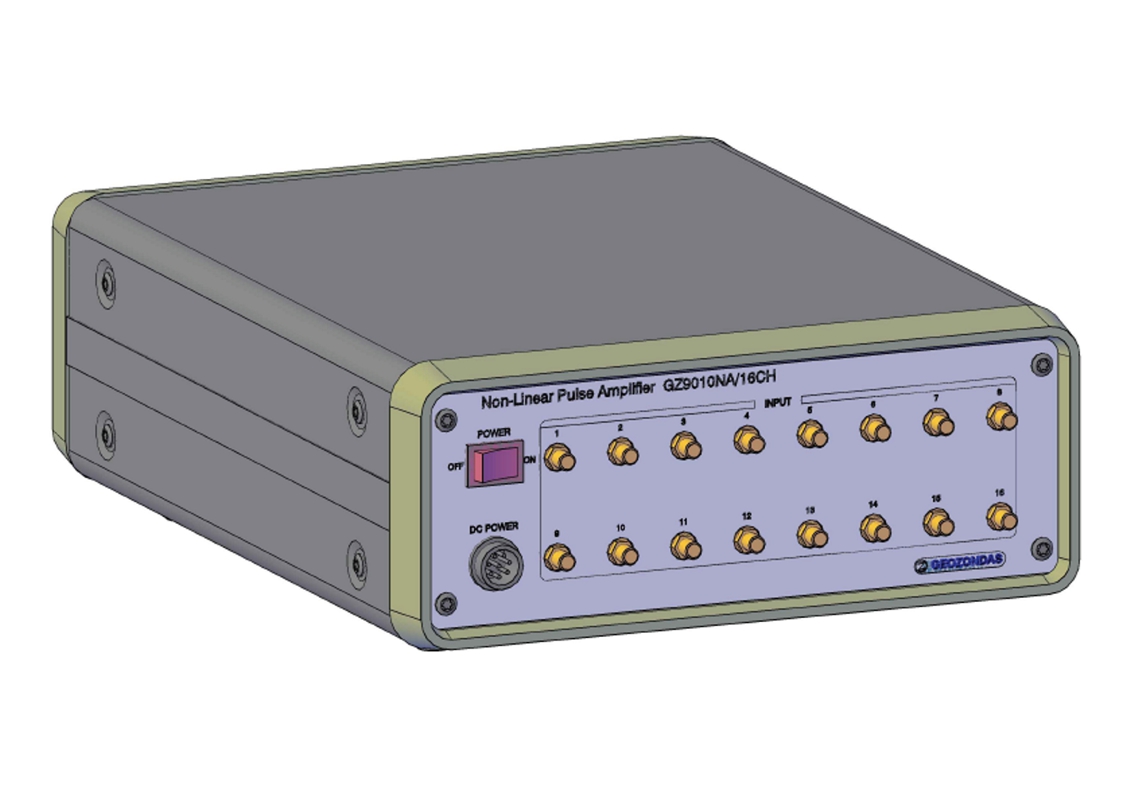

GZ9010NA/16CH
NLPA GZ9010NA/16CH recommended as multichannel driver for triggering of Pulse Generators or other units, that require different trigger signal with amplitude or duration, than has customer trigger source. Each of the 16 channels can be adjusted separately according to customer requirements.
Number Of Channels up to 16
Output Waveform Positive Pulse
Output Amplitude Into 50 Ohm Nominal (1,5 ÷ 10) Vfixed during order
Rise Time 20 80 No More 2,0 ns
Technical Specification
Technical Specification
| Number of channels | up to 16 |
|---|---|
| Output Waveform | Positive Pulse |
| Output amplitude into 50 Ohm, nominal | (1,5 ÷ 10) Vfixed during order |
| Rise time, (20/80)%, no more | 2,0 ns |
| Fall time,(20/80)%, no more | 3,0 ns |
| Pulse width, nominal | 15÷55 nscontrol via front panel |
| Max Duty Cycle | 30 % |
| Front Jitter (rms), no more | 3 ps |
| Ringing p-p, no more | 0,1 x Amplitude |
| Input signal | voltage low level 0 V voltage high level (0,5÷5,0) V/50 Ohm rise time 2,5 ns max duration 5 ns min |
| Max Pulse Repetition Frequency | 10 MHz |
| Impedance, nominal | 50 Ohm |
| Type of HF Connectors | SMA socket |
| Temperature Range | (+5÷+35)°:C Temperature of gase |
| Consumption current, no more (measured at PRF max) | 400 mA @12 V |
| Power Supply | DC +(12,5 ± 1,5) V |
