Pulse Formers

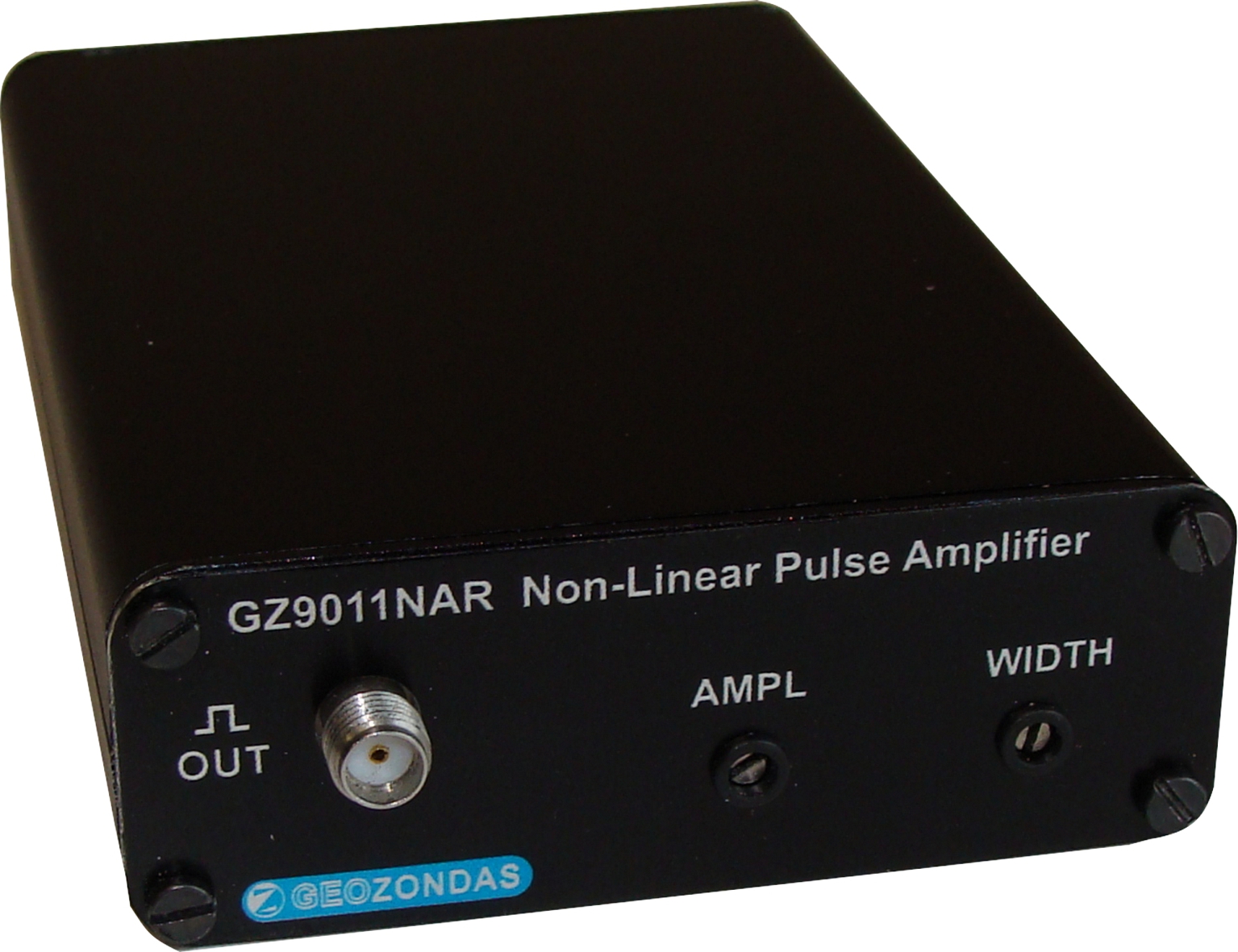

GZ9011NAR
Non-Linear Pulse Amplifier (Pulse Former) GZ9011NAR recommended as driver for triggering of Pulse Generators or other units, that require different trigger signal with amplitude or duration, than has customer trigger source.May be used together with PGM GZ1105DLP-3.
Number Of Channels 1
Output Waveform Positive Pulse
Output Amplitude Into 50 Ohm Nominal (1,5 ÷ 10) Vcontrol via front panel
Rise Time 20 80 No More 2,0 ns
Technical Specification
Technical Specification
| Number of channels | 1 |
|---|---|
| Output Waveform | Positive Pulse |
| Output amplitude into 50 Ohm, nominal | (1,5 ÷ 10) Vcontrol via front panel |
| Rise time, (20/80)%, no more | 2,0 ns |
| Fall time,(20/80)%, no more | 3,0 ns |
| Pulse width, nominal | 15÷55 nscontrol via front panel |
| Max Duty Cycle | 30 % |
| Front Jitter (rms), no more | 3 ps |
| Ringing p-p, no more | 0,1 x Amplitude |
| Input signal | voltage low level 0 V voltage high level (0,5÷5,0) V/50 Ohm rise time 2,5 ns max duration 5 ns min |
| Max Pulse Repetition Frequency | 10 MHz |
| Impedance, nominal | 50 Ohm |
| Type of HF Connectors | SMA socket |
| Temperature Range | (+5÷+35)°:C Temperature of gase |
| Consumption current, no more (measured at PRF max) | 400 mA @12 V |
| Power Supply | DC +(12,5 ± 1,5) V |
Diagrams

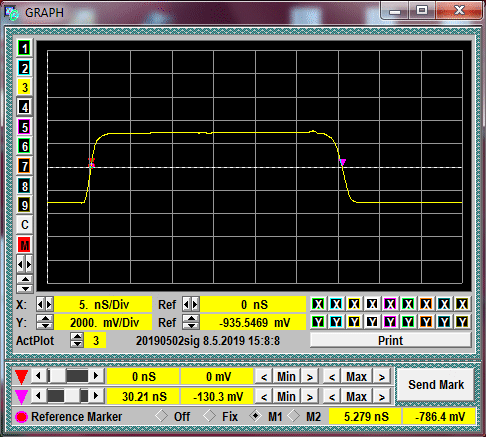

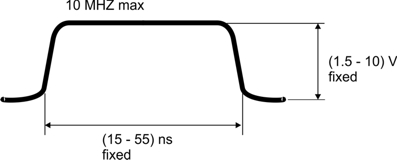

Waveforms and Diagrams
