Pulse Formers

GZ9010NA-25

Non-Linear Pulse Amplifier (Pulse Former) GZ9010NA-25 recommended as driver for triggering of Pulse Generators or other units, that require different trigger signal with amplitude or duration, than has customer trigger source.May be used together with PGM GZ1105DLP-3.

Number Of Channels 1

Output Waveform Positive Pulse

Output Amplitude Into 50 Ohm Nominal (1,5 ÷ 10) Vfixed during order

Rise Time 20 80 No More 2,0 ns

Technical Specification

Number of channels	1
Output Waveform	Positive Pulse
Output amplitude into 50 Ohm, nominal	(1,5 ÷ 10) Vfixed during order
Rise time, (20/80)%, no more	2,0 ns
Fall time,(20/80)%, no more	2,0 ns
Pulse width, nominal	10÷20 ns fixed during order
Max Duty Cycle	30 %
Front Jitter (rms), no more	3 ps
Ringing p-p, no more	0,12 x Amplitude
Input signal	voltage low level 0 V voltage high level (0,5÷5,0) V/50 Ohm rise time 2,5 ns max duration 5 ns min
Max Pulse Repetition Frequency	25,0 MHz
Impedance, nominal	50 Ohm
Type of HF Connectors	SMA socket
Temperature Range	(+5÷+35)°:C Temperature of gase
Consumption current, no more (measured at PRF max)	400 mA @12 V
Power Supply	DC +(12,5 ± 1,5) V

Diagrams

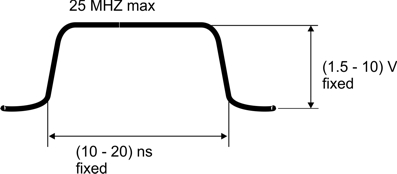

Waveforms and Diagrams

GZ9010NA-25

Technical Specification

Waveforms and Diagrams
