Pulse Generator Heads
GZ1117DN-35
Pulse Generator Head GZ1117DN-35 is designed for generation of negative high speed electrical pulses with short duration for different UWB applications
Waveform Approximately Delta-function
Amplitude No Less 25 V
Amplitude Typical 30 V
Polarity negative
Technical Specification
Technical Specification
| Waveform | Approximately Delta-function |
|---|---|
| Amplitude, no less | 25 V |
| Amplitude, typical | 30 V |
| Polarity | negative |
| Waveform ringing, no more | ±7% before and 0,2 ns after main pulse ±3% 0,4 ns after main pulse |
| Pulse Width, no more | (35+2) ps |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Power Supply, V | +(12,5± 1,5) V |
| Consumption Current (measured @ 1 MHz PRF), no more | 200 mA @ 12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
Downloads
Downloads and References

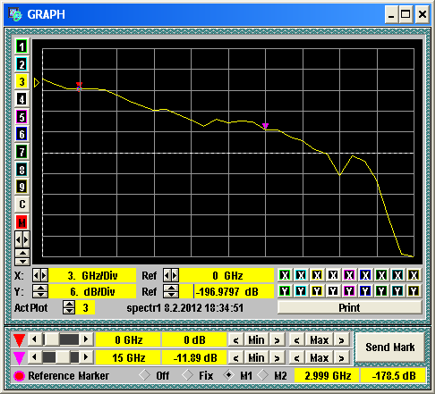

Diagrams
Waveforms and Diagrams
