Pulse Generator Heads
GZ1117ME-12G
Pulse Generator Head GZ1117ME-12G is designed for generation of monocycle high speed electrical pulses with short duration in different applications

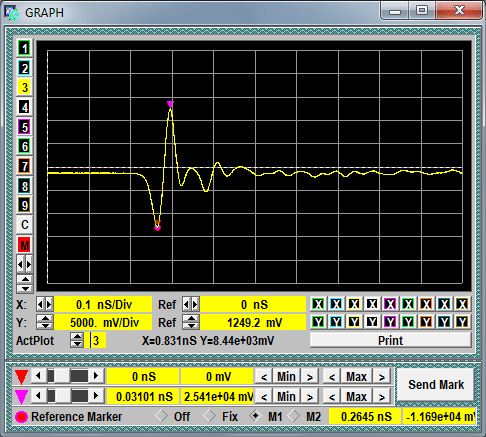

Waveform Monocycle (Bipolar)
Amplitude P P No Less 20 V
Asymmetry Of Half Wave No More 10 %

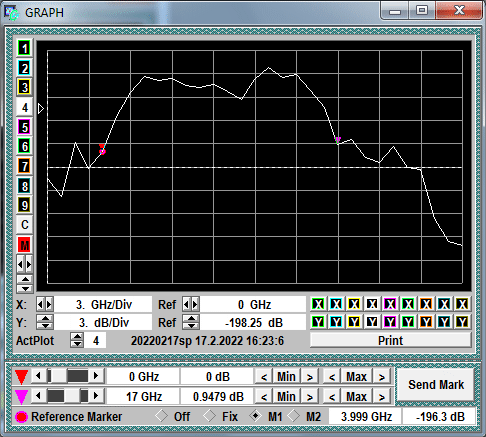

Frequency Range Of Spectrum Inside 10db Level Of Spectrum Max No Less 16,0 GHz nominal range (4,0 ÷ 20,0) GHz
Technical Specification
Technical Specification
| Waveform | Monocycle (Bipolar) |
|---|---|
| Amplitude p-p, no less | 20 V |
| Asymmetry of half-wave, no more | 10 % |
| Frequency range of Spectrum inside (-10dB level of Spectrum max), no less | 16,0 GHz nominal range (4,0 ÷ 20,0) GHz |
| Waveform ringing p-p, no more | 0,1 x Amplitude before and 0,1ns after main pulse |
| Delay (trigger in to pulse out), no more | 12 ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR),GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Power Supply, V | DC +(12,5±1,5) VMIC338 plug |
| Consumption Current (measured @ 1 MHz PRF), no more | 250 mA @ +12V |
| Type of HF Connector | 2,92 mm socket |
| Dimensions | (65x28x150) mm |
| Weight | 1,162 kg |
