Pulse Generator Heads
GZ1118GN-01EV
Pulse Generator Head GZ1118GN-01EV is designed for generation of negative high speed electrical pulses with short duration for different UWB applications
Waveform Approximately Delta Function
Amplitude No Less 38 V
Amplitude Typical 40 V
Polarity negative
Technical Specification
Technical Specification
| Waveform | Approximately Delta Function |
|---|---|
| Amplitude, no less | 38 V |
| Amplitude, typical | 40 V |
| Polarity | negative |
| Waveform ringing, no more | ±8% (before and 0,3 ns after main pulses) |
| Pulse Width, no more | (100±10) ps |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Consumption Current (measured @ 1 MHz PRF), no more | 300 mA (from +12 V) |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
Downloads
Downloads and References
Diagrams

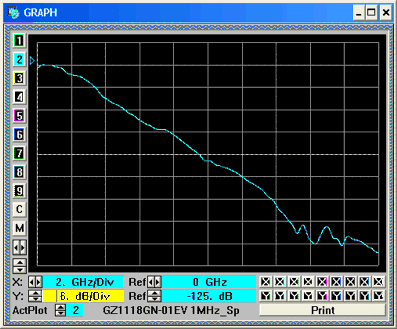

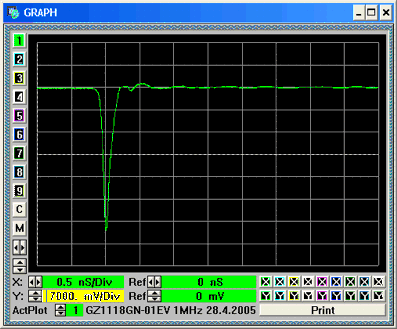

Waveforms and Diagrams
