Pulse Generator Heads
GZ1118GNP-10
Balanced Pulse Generator Head GZ1118GNP-10 performs two reverse polarity impulses for different UWB applications
Waveform 2 Impulses, reverse polarity
Output Connector Symmetric 7 x 10 mm part of 2 mm PCB
Amplitude No Less +80,0 V / -80,0 Vinto 50 Ohm
Polarity negative and positive polarity
Technical Specification
Technical Specification
| Waveform | 2 Impulses, reverse polarity |
|---|---|
| Output Connector | Symmetric 7 x 10 mm part of 2 mm PCB |
| Amplitude, no less | +80,0 V / -80,0 Vinto 50 Ohm |
| Polarity | negative and positive polarity |
| Waveform ringing p-p, no more | 0,15xAmplitude (3,0 ns after main pulse) |
| Initial delay of negative pulse (trigger to negative pulse out) | 30,0 ns, nominal |
| Initial delay of positive pulse (trigger to positive pulse out) | 20 ÷ 40 ns |
| Pulse Width (0,5 level) | (1,0 ± 0,1) ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minSMA socket |
| Maximal Pulse Repetition Frequency | 500 kHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 5.0 ps |
| Power Supply, V | DC +(12,5± 1,5) V MIC338 plug |
| Consumption Current (measured @ 500 kHz PRF), no more | 300 mA @ +12 V |
| Consumption Current (measured at PRF max), no more | 300 mA @ +12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (110x75x35) mm |
Downloads
Downloads and References
Diagrams

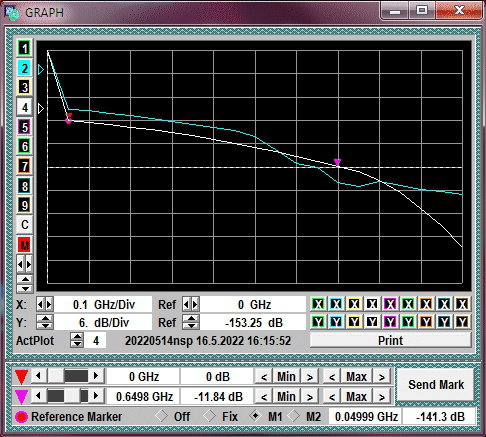

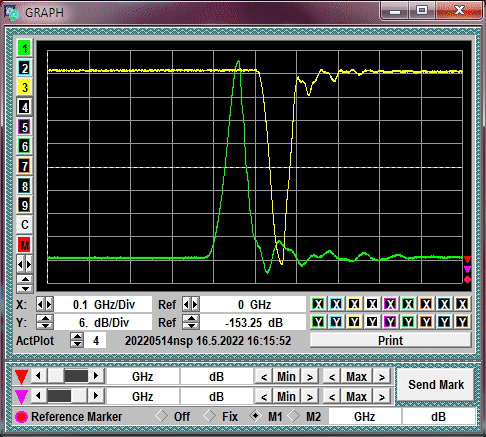

Waveforms and Diagrams
