Pulse Generator Heads
GZ1118GP-01/50M
Pulse Generator Head GZ1118GP-01/50M is designed for generation of positive high speed electrical pulses with short duration for different UWB applications.Can be used for pulsing of Laser Diod
Waveform Approximately Gaussian
Amplitude No Less 9 V
Polarity positive
Waveform Ringing No More 0,15xAmplitude(before and after main pulse)
Technical Specification
Technical Specification
| Waveform | Approximately Gaussian |
|---|---|
| Amplitude, no less | 9 V |
| Polarity | positive |
| Waveform ringing, no more | 0,15xAmplitude(before and after main pulse) |
| Delay (trigger in to pulse out), no more | 12 ns |
| Pulse Width (0,5 level), no more | (100±20) ps |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 50 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Power Supply, V | +(12,5± 1,5) V |
| Consumption Current (measured @ 1 MHz PRF), no more | 450 mA @ +12V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
Downloads
Downloads and References

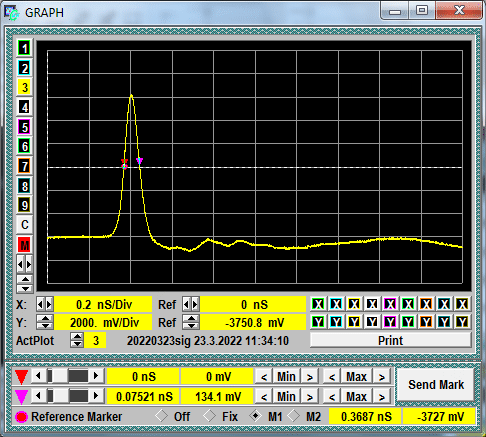

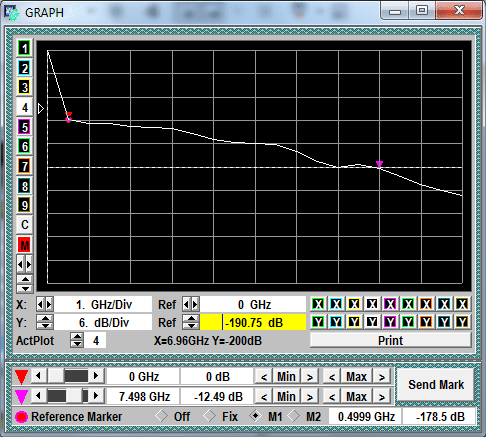

Diagrams
