Pulse Generator Heads
GZ1118GP-10HM
Pulse Generator Head GZ1118GP-10HM is designed for generation of positive UWB nanosecond electrical pulses with short duration for different UWB applications
Waveform Impulse
Amplitude No Less 80,0 V
Polarity positive
Waveform Ringing P P No More 0,15xAmplitude (3,0 ns after main pulse)
Technical Specification
Technical Specification
| Waveform | Impulse |
|---|---|
| Amplitude, no less | 80,0 V |
| Polarity | positive |
| Waveform ringing p-p, no more | 0,15xAmplitude (3,0 ns after main pulse) |
| Delay (trigger in to pulse out), no more | 12,0 ns |
| Pulse Width (0,5 level) | (1,0 ± 0,1) ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minSMA socket |
| Maximal Pulse Repetition Frequency | 500 kHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 5.0 ps |
| Power Supply, V | DC +(12,5± 1,5) V MIC338 plug |
| Consumption Current (measured @ 500 kHz PRF), no more | 200 mA @ +12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |

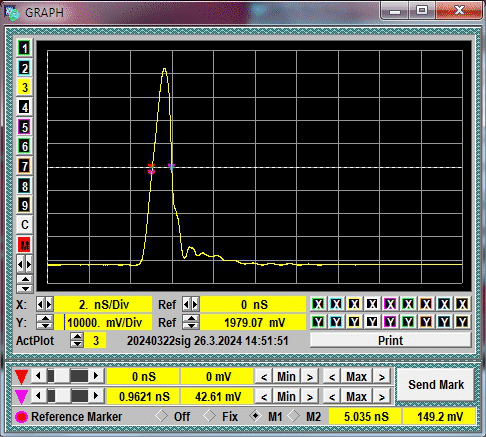

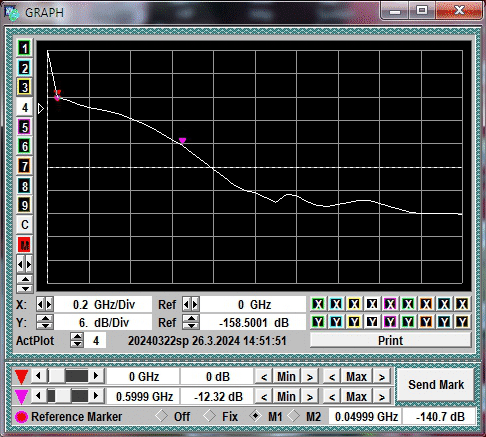

Diagrams
Waveforms and Diagrams
