Pulse Generator Heads
GZ1118GPV-10/100
The Pulse Generator Head GZ1118GPV-10/100 is designed for generation of positive high speed electrical pulses with short rise time and variable duration.
Waveform Pulse
Amplitude No Less 10,0 V
Rise Time 0 2 0 8 Level No More 0,5 ns
Fall Time 0 2 0 8 Level No More 0,5 ns
Technical Specification
Technical Specification
| Waveform | Pulse |
|---|---|
| Amplitude, no less | 10,0 V |
| Rise Time(0,2-0,8 level) , no more | 0,5 ns |
| Fall Time (0,2/0,8) level, no more | 0,5 ns |
| Delay (trigger in to pulse out), no more | 15,0 ns |
| Pulse Width (0,5 level) | (1.0 ÷ 10.0) nsvariable from panel |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minSMA socket |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 3,0 ps |
| Power Supply, V | DC +(12,5±1,5) VMIC338 plug |
| Consumption Current (measured at PRF max), no more | 300 mA @ +12 V |
| Type of HF Connector | SMA socket |
Diagrams

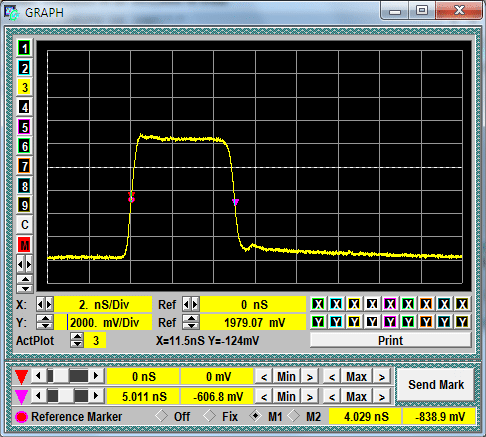

Waveforms and Diagrams
