Pulse Generator Heads
GZ1120ME-02
Pulse Generator Head GZ1120ME-02 is designed for generation of monocycle high speed electrical pulses with short duration for different UWB applications
Waveform Monocycle
Amplitude P P No Less 80 V
Waveform Ringing P P No More 0,2 x Amplitude
Delay Trigger In To Pulse Out No More 12.0 ns
Technical Specification
Technical Specification
| Waveform | Monocycle |
|---|---|
| Amplitude p-p, no less | 80 V |
| Waveform ringing p-p, no more | 0,2 x Amplitude |
| Delay (trigger in to pulse out), no more | 12.0 ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 0.5 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 3,0 ps |
| Power Supply, V | DC +(12,5± 1,5) V |
| Consumption Current (measured at PRF max), no more | 350 mA |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
Downloads
Downloads and References

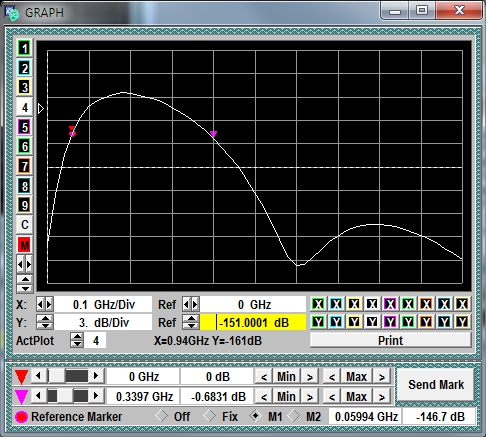

Diagrams

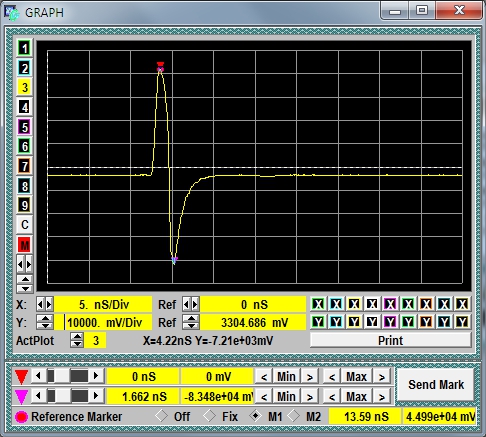

Waveforms and Diagrams
