Pulse Generator Heads
GZ1120ME-35/50M
Pulse Generator Head GZ1120ME-35/50M designed for generation of monocycle high speed electrical pulses with limited band spectrum for application in UWB radar evaluation kit
Waveform Monocycle
Amplitude P P No Less 10 V
Triggering external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3SMA socket
Maximal Pulse Repetition Frequency 50 MHz
Technical Specification
Technical Specification
| Waveform | Monocycle |
|---|---|
| Amplitude p-p, no less | 10 V |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3SMA socket |
| Maximal Pulse Repetition Frequency | 50 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 4,0 ps |
| Power Supply, V | DC +(12,5± 1,5) VMIC338 plug |
| Consumption Current (measured @ 1 MHz PRF), no more | 350 mA @12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (114x64x30) mm |
| Weight | 0,20 kg |
Downloads
Downloads and References
Diagrams

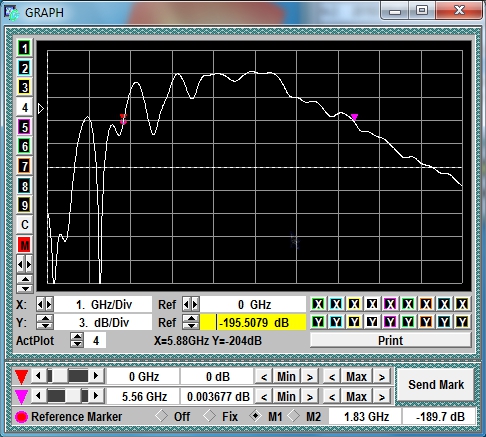

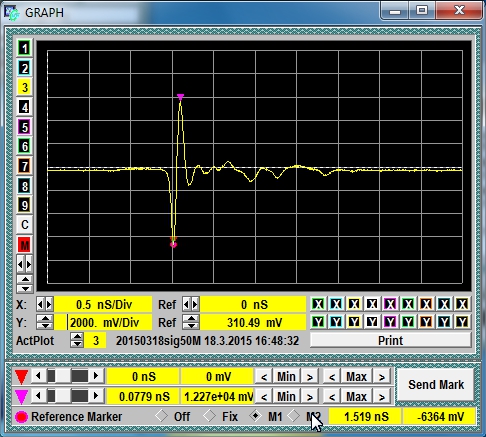

Waveforms and Diagrams
