Pulse Generator Heads
GZ1120ME-40HV
External Pulse Generator Head GZ1120ME-40HV is designed for generation of monocycle high speed electrical pulses with limited band spectrum
Waveform Monocycle
Amplitude P P No Less 28 V
Waveform Ringing P P No More 0,1 x Amplitude(before and 0,25 ns after main pulse)
Triggering external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3
Technical Specification
Technical Specification
| Waveform | Monocycle |
|---|---|
| Amplitude p-p, no less | 28 V |
| Waveform ringing p-p, no more | 0,1 x Amplitude(before and 0,25 ns after main pulse) |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Power Supply, V | DC +(12,5±1,5) VMIC338 plug |
| Consumption Current (measured @ 1 MHz PRF), no more | 150 mA @12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
Downloads
Downloads and References

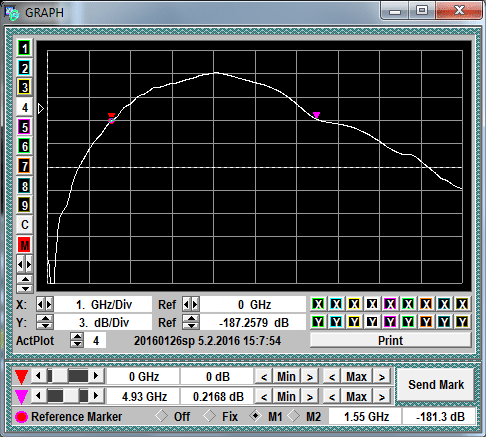

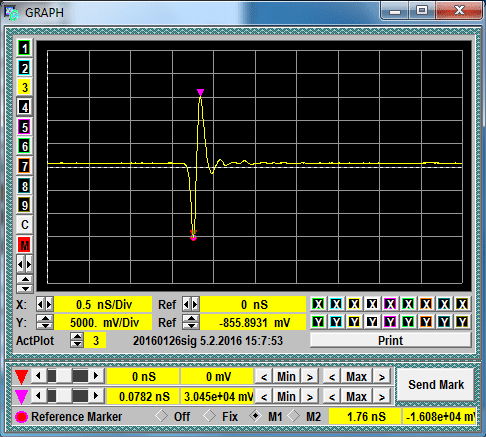

Diagrams
