Pulse Generator Heads
GZ1121GP-05/200V/1M
Pulse Generator Head GZ1121GP-05/200V/1M is designed for generation of positive high speed electrical pulses with short duration for different UWB applications
Waveform Approximately Gaussian
Amplitude No Less 200 V
Polarity positive
Waveform Ringing No More 0,1xAmplitude (15,0 ns after main pulse)
Technical Specification
Technical Specification
| Waveform | Approximately Gaussian |
|---|---|
| Amplitude, no less | 200 V |
| Polarity | positive |
| Waveform ringing, no more | 0,1xAmplitude (15,0 ns after main pulse) |
| Delay (trigger in to pulse out), no more | 120 ns |
| Pulse Width (0,5 level), no more | 5,0 ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 1 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 5,0 ps |
| Power Supply, V | DC + (12,5 ± 1,5) VMIC338 plug |
| Consumption Current (measured @ 1 MHz PRF), no more | 2500 mA @ +12V |
| Type of HF Connector | SMA or N socket |
| Dimensions | (170x125x80) mm |
| Weight | 1,162 kg |
Downloads
Downloads and References
Diagrams

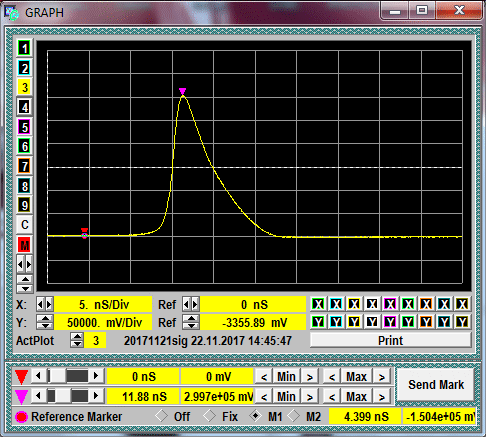

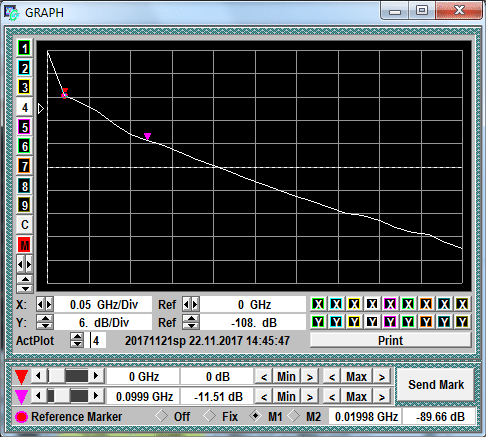

Waveforms and Diagrams
