Pulse Generator Heads
GZ1121GP-05HV
Pulse Generator Head GZ1121GP-05HV is designed for generation of positive high speed electrical pulses with short duration for different UWB applications

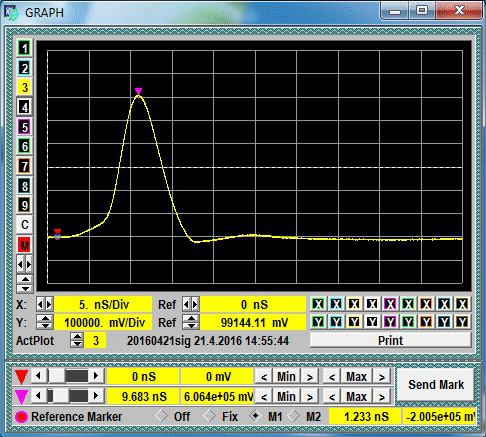

Waveform Approximately Gaussian
Amplitude No Less 550 V
Polarity positive
Waveform Ringing P P No More 0,1 x Amplitude(5 ns after main pulse)

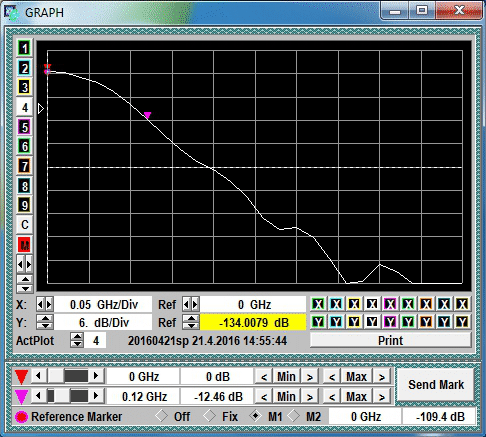

Technical Specification
Technical Specification
| Waveform | Approximately Gaussian |
|---|---|
| Amplitude, no less | 550 V |
| Polarity | positive |
| Waveform ringing p-p, no more | 0,1 x Amplitude(5 ns after main pulse) |
| Delay (trigger in to pulse out), no more | 100 ns |
| Pulse Width, no more | (5,0 ± 0,5) ns |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 100 kHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 5,0 ps |
| Power Supply, V | DC + (12,5 ± 1,5) VMIC338 plug |
| Consumption Current (measured @ 1 MHz PRF), no more | 600 mA @12V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
