Pulse Generator Heads
GZH1117A
Built-In Pulse Generator Head GZH1117A is designed for generation of negative high speed electrical pulses with short duration for different UWB applications

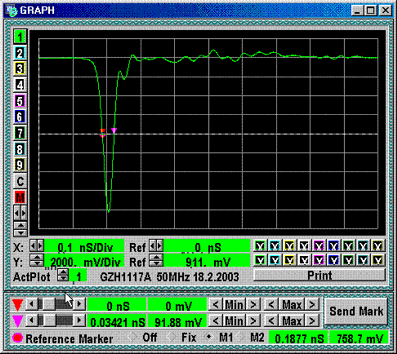

Waveform Approximately Delta-function
Amplitude No Less 13,5 V
Amplitude Typical 15 V
Polarity negative
Technical Specification
Technical Specification
| Waveform | Approximately Delta-function |
|---|---|
| Amplitude, no less | 13,5 V |
| Amplitude, typical | 15 V |
| Polarity | negative |
| Waveform ringing, no more | ±12% (before and 0,3 ns after main pulses) |
| Pulse Width, no more | (35±5) ps (36÷44 ps taking into consideration rise time of 20GHz converter) |
| Triggering | external (3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minrecommended from GZ9010NA(GZ9011NAR), GZ1106DL2 or GZ1105DLP3 |
| Maximal Pulse Repetition Frequency | 50 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 2,5 ps |
| Power Supply, V | +(12,5± 1,5) V |
| Consumption Current (measured @ 1 MHz PRF), no more | 500 mA @12 V |
| Type of HF Connector | SMA socket |
| Dimensions | (65x28x150) mm |
| Weight | 0,38 kg |
