Pulse Generator Heads
GZPM-25
Pulse Generator Module GZPM-25 is designed to generate monocycle high speed electrical pulses and it is used for triggering of different devices.Parameters can be modified according to your requirements.
Waveform Monocycle
Amplitude P P No Less 10 V
Waveform Ringing P P No More 0,1 x Amplitude(1 ns after main pulse)
Delay Trigger In To Pulse Out No More 24.0 ns
Technical Specification
Technical Specification
| Waveform | Monocycle |
|---|---|
| Amplitude p-p, no less | 10 V |
| Waveform ringing p-p, no more | 0,1 x Amplitude(1 ns after main pulse) |
| Delay (trigger in to pulse out), no more | 24.0 ns |
| Triggering | internalPRF:1.0 MHz,2.0 MHz,5.0 MHz,10.0 MHz external(3÷5) V/50 Ohm, rise time 2 ns max duration 5 ns minSMA socket |
| Maximal Pulse Repetition Frequency | 10 MHz |
| Impedance | 50 Ohm |
| Jitter (RMS), no more | 4,0 ps |
| Power Supply, V | DC +(12,5± 1,5) V |
| Consumption Current (measured at PRF max), no more | 300 mA |
| Dimensions | (126x81x30) mm |
Downloads
Downloads and References

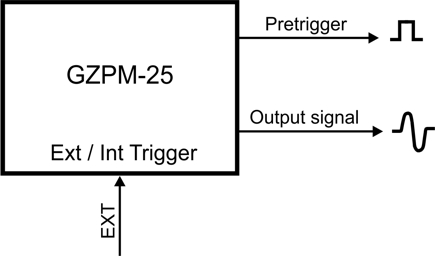

Diagrams

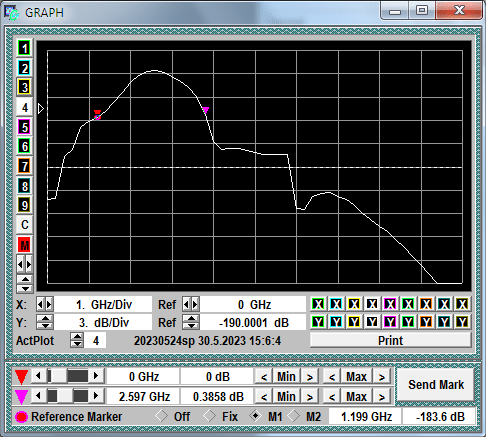

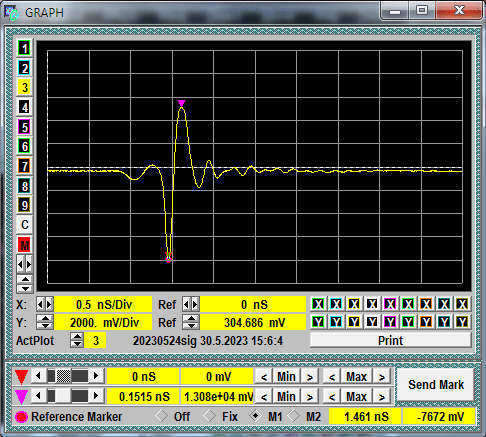

Waveforms and Diagrams
